As warehouse automation continues to grow, vision-based systems are becoming increasingly important in logistics, sorting, inventory management, and industrial equipment. From conveyor barcode reading to forklift-assisted identification, smart warehouse terminals, and AGV/AMR robots, camera modules can help devices capture carton labels, shelf barcodes, QR codes, and other visual information.
However, warehouse barcode scanning is not simply about choosing a “high-resolution camera.” In real applications, factors such as changing lighting, moving cartons, vibration, reflective labels, variable scanning distance, and limited installation space can all affect image clarity and recognition stability.
Therefore, when selecting a camera module for warehouse barcode scanning, engineers need to consider resolution, field of view, lens, working distance, lighting conditions, interface, and mechanical integration.

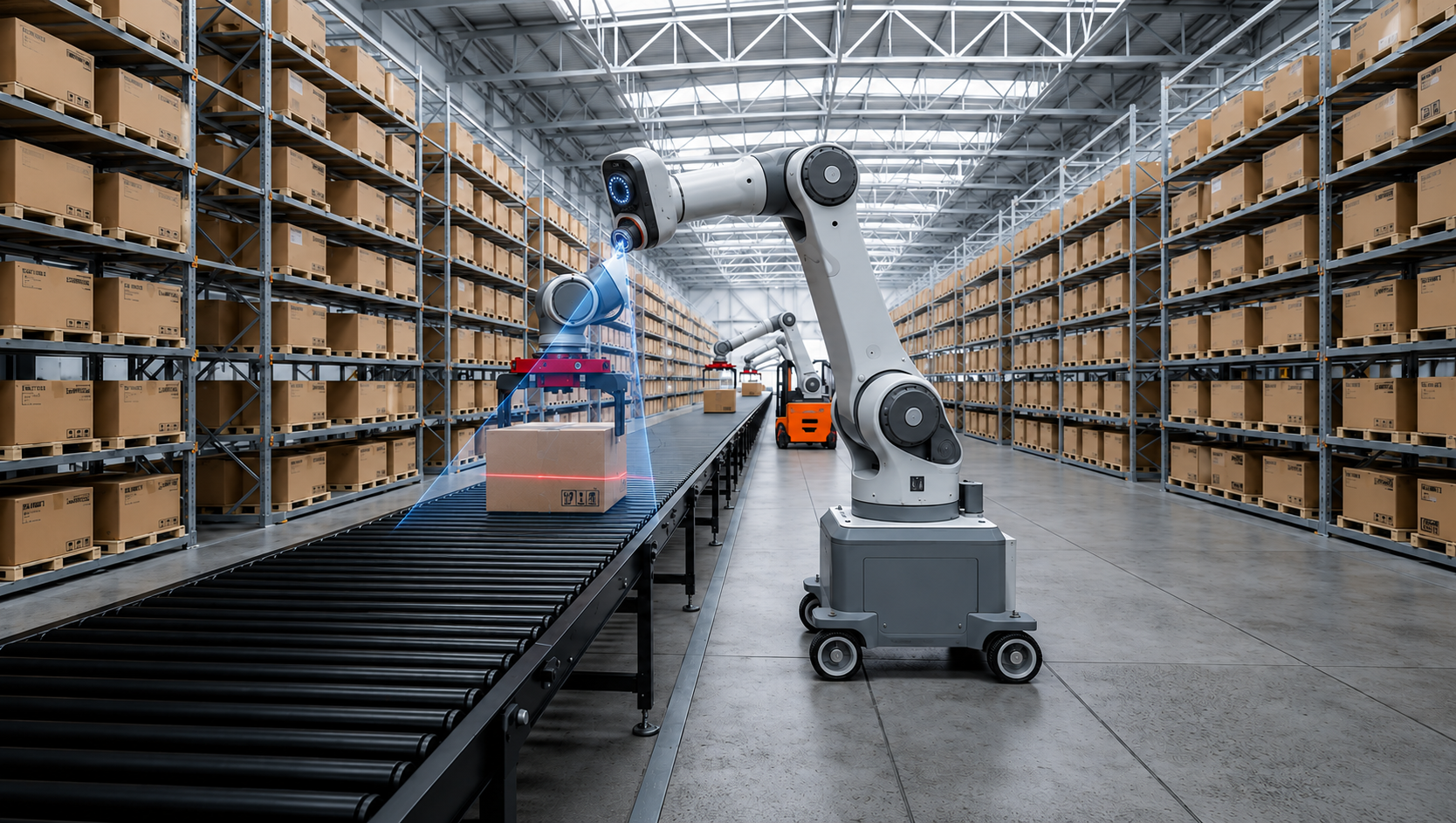

In warehouse automation systems, camera modules can be used in many applications, such as conveyor barcode scanning, forklift pallet identification, carton label reading, smart inventory terminals, AGV/AMR warehouse robots, industrial inspection equipment, and package sorting systems.
If the camera cannot capture clear and stable images, the recognition algorithm may fail, causing missed scans, incorrect reads, or reduced workflow efficiency. That is why the camera module, lens, illumination, interface, and mounting method should be considered together instead of focusing on a single specification.
Resolution determines how much image detail the camera can capture. For warehouse barcode scanning, the camera needs to capture enough barcode detail so that the recognition algorithm can read the code reliably.
For example, a 2MP USB camera module with 1920 × 1080 image output can meet many short-range and medium-range applications, such as carton label capture, shelf barcode reading, and equipment monitoring.
However, higher resolution is not always better. The required resolution should be evaluated together with barcode size, scanning distance, field of view, lens focal length, recognition algorithm, system bandwidth, and processing capability.
Field of view determines how much area the camera can see. In warehouse applications, a wider field of view can help cover a larger area, such as cartons on a conveyor, shelf labels, or pallet labels.
For example, a 92° field of view camera module can capture a relatively wide scene, which is useful when the barcode position may shift slightly. However, if the field of view is too wide, the barcode may appear too small in the image and affect recognition performance.
Therefore, the field of view should be selected based on the actual scanning distance, barcode size, and installation position.
The lens directly affects image sharpness and barcode readability. When selecting a lens, it is important to confirm the actual scanning distance, required image area, barcode size, camera mounting angle, focus distance, and depth of field.
For fixed-position scanning, such as conveyor barcode reading, the lens can be selected according to a fixed working distance. For forklifts, robots, and other mobile equipment, the scanning distance may vary, so depth of field and installation angle become more important.
Warehouse lighting is often unstable. Some areas may be bright, while others may have shadows. Reflective labels may also create glare and reduce barcode readability.
An IR-CUT camera module can help provide more natural image performance under normal lighting conditions. If the application environment has complex lighting, LED illumination, exposure tuning, and white balance adjustment can also be used to improve image clarity and recognition stability.
Good lighting design helps reduce motion blur, improve barcode contrast, and increase the stability of image capture.
USB camera modules are widely used in embedded and industrial devices because they are easy to integrate and compatible with many platforms.
A USB2.0 camera module can be connected to industrial PCs, embedded development boards, Windows systems, Linux systems, and Android devices. For smart warehouse terminals, industrial scanning devices, visual inspection equipment, embedded monitoring systems, and compact automation machines, a USB camera module is a practical choice.
If the project has higher requirements for cable length, transmission distance, or industrial interference resistance, other interface solutions may also be considered based on actual needs.

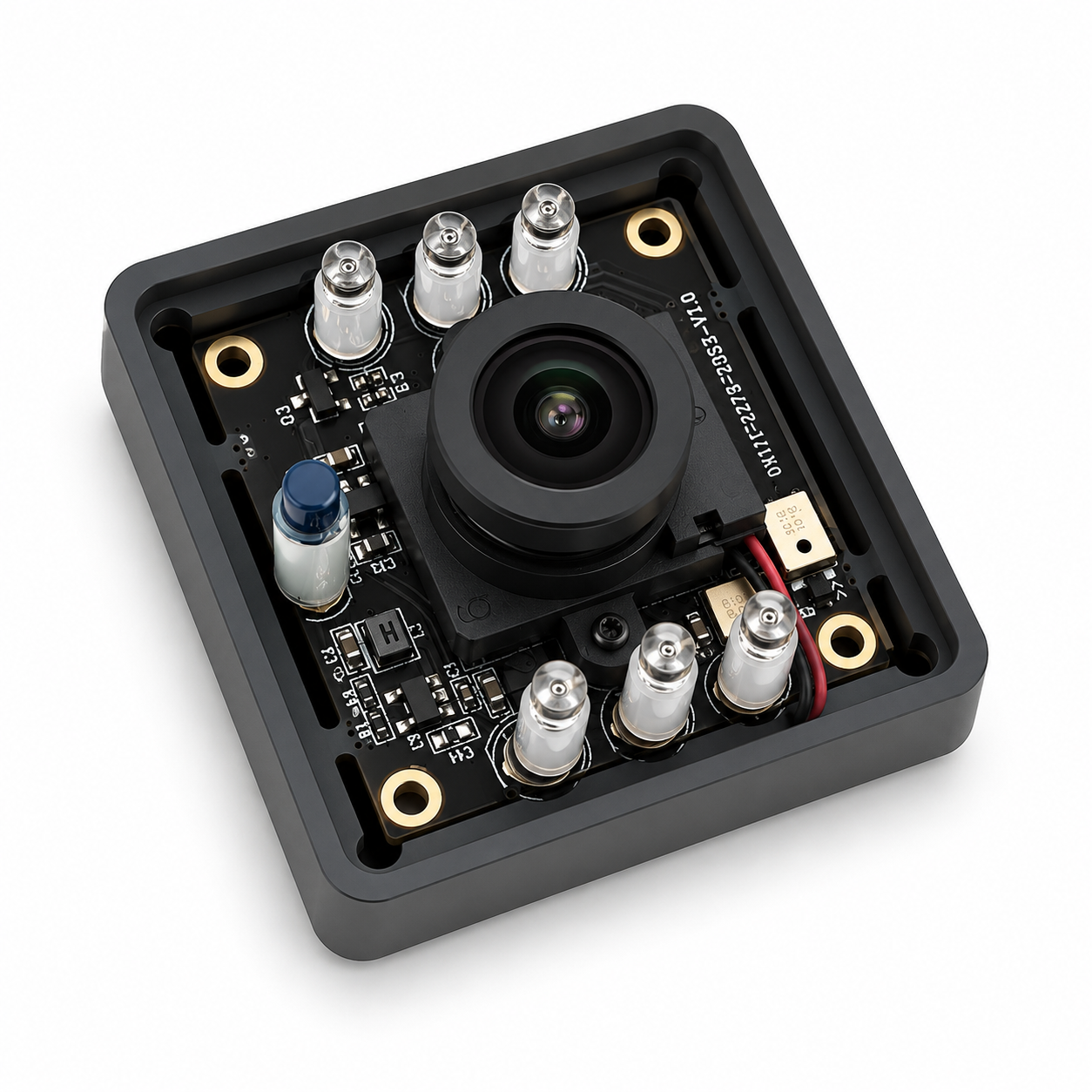

TW171 is a compact 2MP USB camera module suitable for embedded vision, industrial equipment, smart terminals, and warehouse automation applications.
Key features include:
With its compact structure and USB interface, this type of camera module can be integrated into warehouse devices, inspection terminals, smart shelves, conveyor barcode scanning equipment, and industrial monitoring systems.

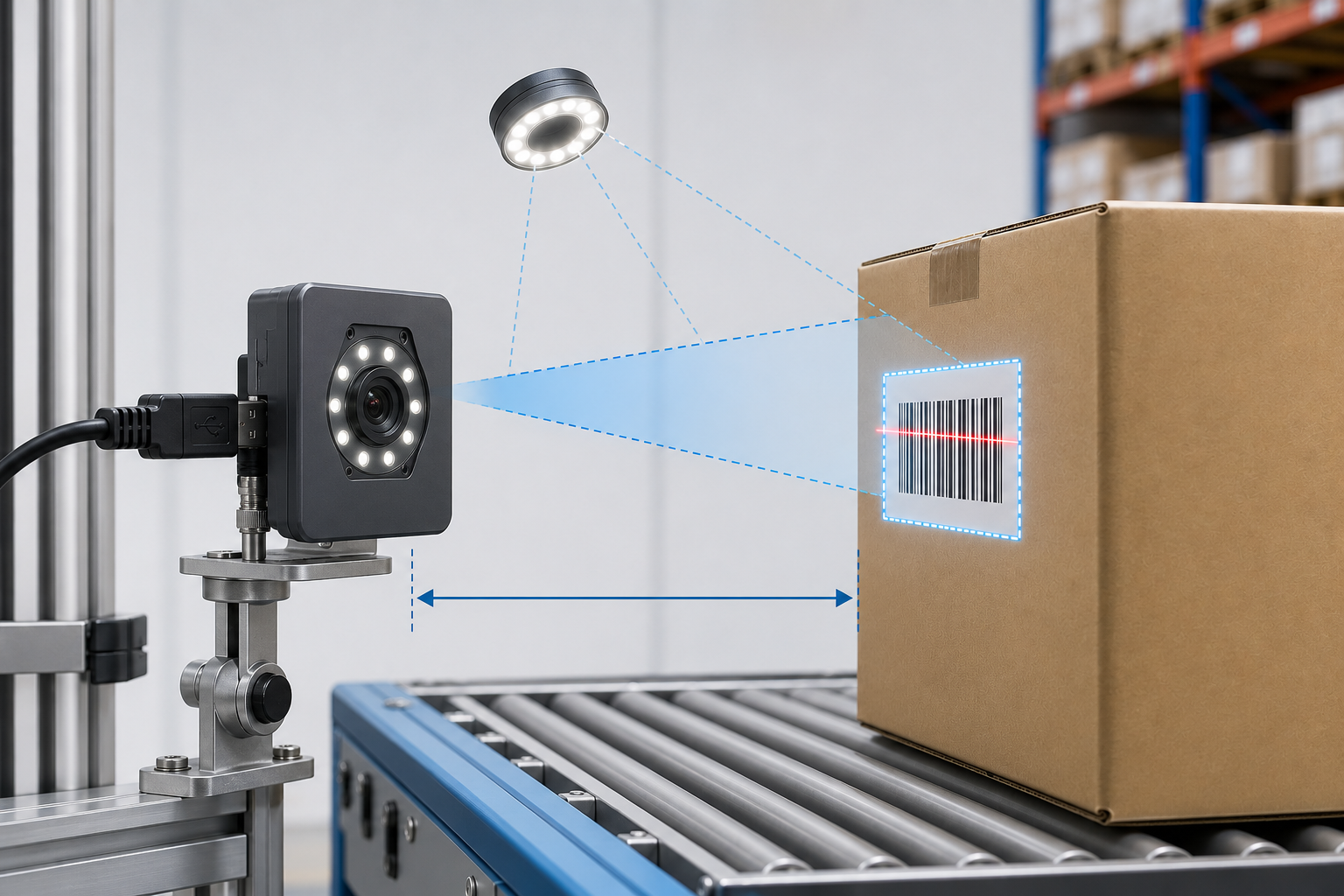

In conveyor systems, packages and cartons move continuously. A camera module can be installed beside or above the conveyor to capture barcodes, QR codes, or label information on cartons.
For this application, engineers usually need to consider image clarity, frame rate stability, lens focus distance, field of view, illumination design, and USB connection stability.

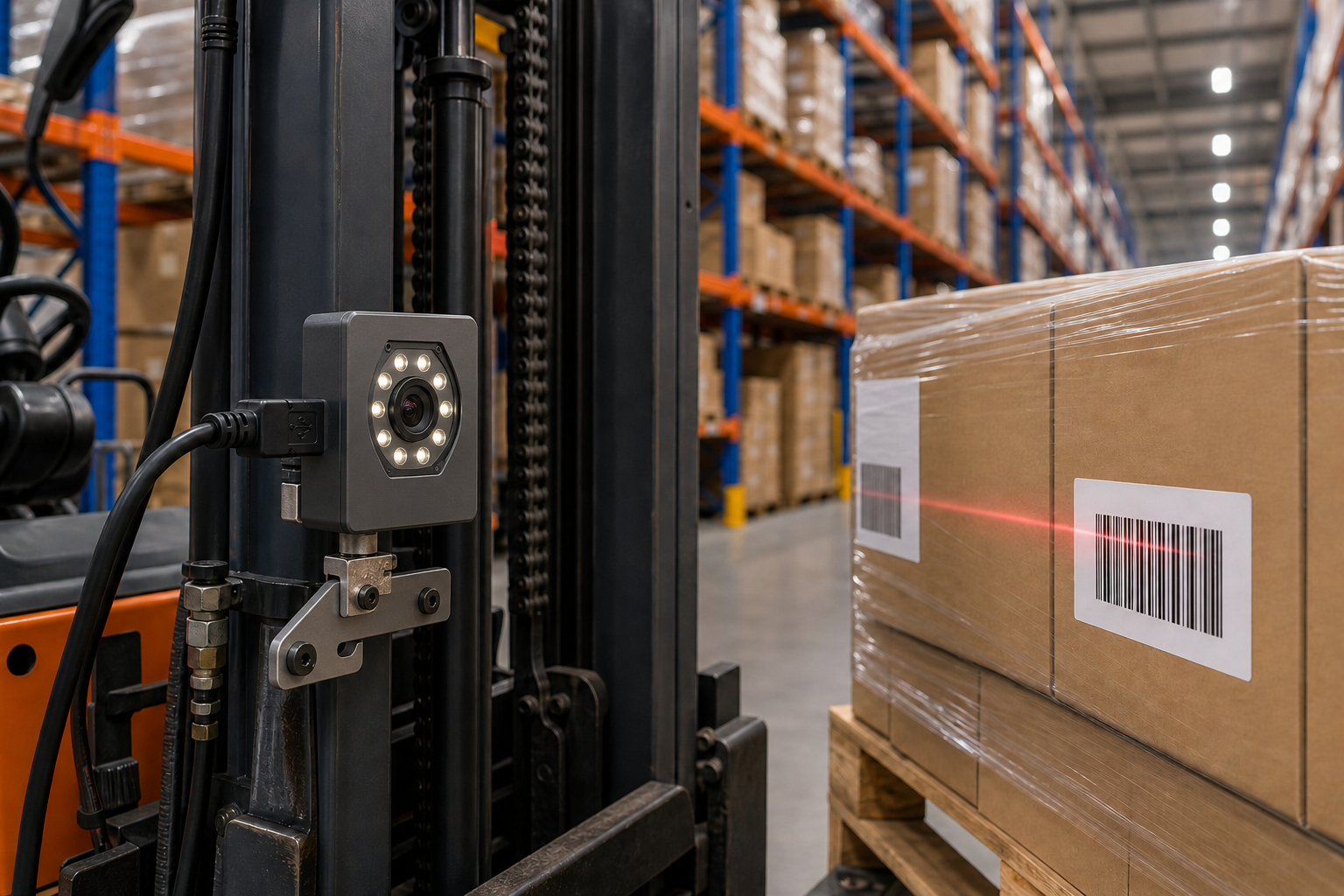

A camera module can also be installed on a forklift or mobile device to identify pallet labels, shelf labels, or carton barcodes.
This type of application requires stable mounting, vibration resistance, suitable scanning distance, sufficient field of view, reliable cable and connector design, and clear image capture during movement.
In smart inventory terminals, embedded scanning devices, and industrial identification equipment, a compact USB camera module can help reduce device size and simplify system integration.
Depending on the device structure, lens focal length, field of view, cable length, interface type, housing design, mounting holes, and image parameters can be customized.
Different warehouse devices have different structures and working environments. A standard camera module may not always fit every project. Therefore, customization is very important.
Common customization options include lens focal length, field of view, cable length, USB connector, PCB size, mounting holes, IR-CUT configuration, housing structure, image tuning, and host platform adaptation.
For camera module manufacturers, customization helps customers better match device structure, installation space, and real optical requirements.
Choosing a camera module for warehouse barcode scanning requires more than checking resolution. The real factors affecting recognition performance include sensor, lens, field of view, working distance, lighting conditions, interface, mechanical installation, and system compatibility.
Taking the TW171 2MP USB IR-CUT camera module as an example, it offers 2MP resolution, USB2.0 interface, 92° field of view, IR-CUT support, and a compact structure. It is suitable for embedded vision devices, smart warehouse terminals, conveyor identification, industrial monitoring, and related automation equipment.
We provide customized camera module solutions for industrial equipment and warehouse automation applications, including USB camera modules, MIPI camera modules, lens and field-of-view customization, cable and connector customization, housing and mechanical design, image tuning, and system integration support.
If you are developing warehouse barcode scanning equipment, an embedded vision system, or an industrial identification terminal, we can recommend and customize a suitable camera module solution based on your scanning distance, barcode size, installation space, and host platform.
