A camera module may be specified to support 30fps, but after it is connected to the final device, the actual frame rate may fall to 20fps, 15fps or even lower. The video may also appear delayed, unstable or less smooth than expected.
This does not always mean that the camera module is defective.
The rated frame rate is usually achieved under a specific combination of resolution, video format, exposure settings, interface bandwidth and test platform. When any of these conditions changes, the actual performance may also change.
For equipment manufacturers and solution providers, understanding these factors before selecting a camera module can reduce compatibility problems, repeated sample testing and delays before mass production.
A camera module may support several resolution and frame-rate combinations, such as:
However, “maximum 30fps” does not mean that every supported resolution can operate at 30fps.
Higher resolutions produce more data per frame. If the sensor, processor or interface cannot transfer and process the data fast enough, the available frame rate will decrease.
The output format also makes an important difference.
USB camera modules commonly support MJPEG and YUY2. YUY2 transmits uncompressed video and requires much more bandwidth, while MJPEG compresses each frame before transmission.
For example, a USB 2.0 camera may support 1080p at 30fps in MJPEG mode but provide a lower frame rate in YUY2 mode.
The camera specification may be correct, but the customer’s software may automatically select a different format. Buyers should therefore confirm the complete combination of resolution, frame rate and video format—not just the maximum values listed separately.

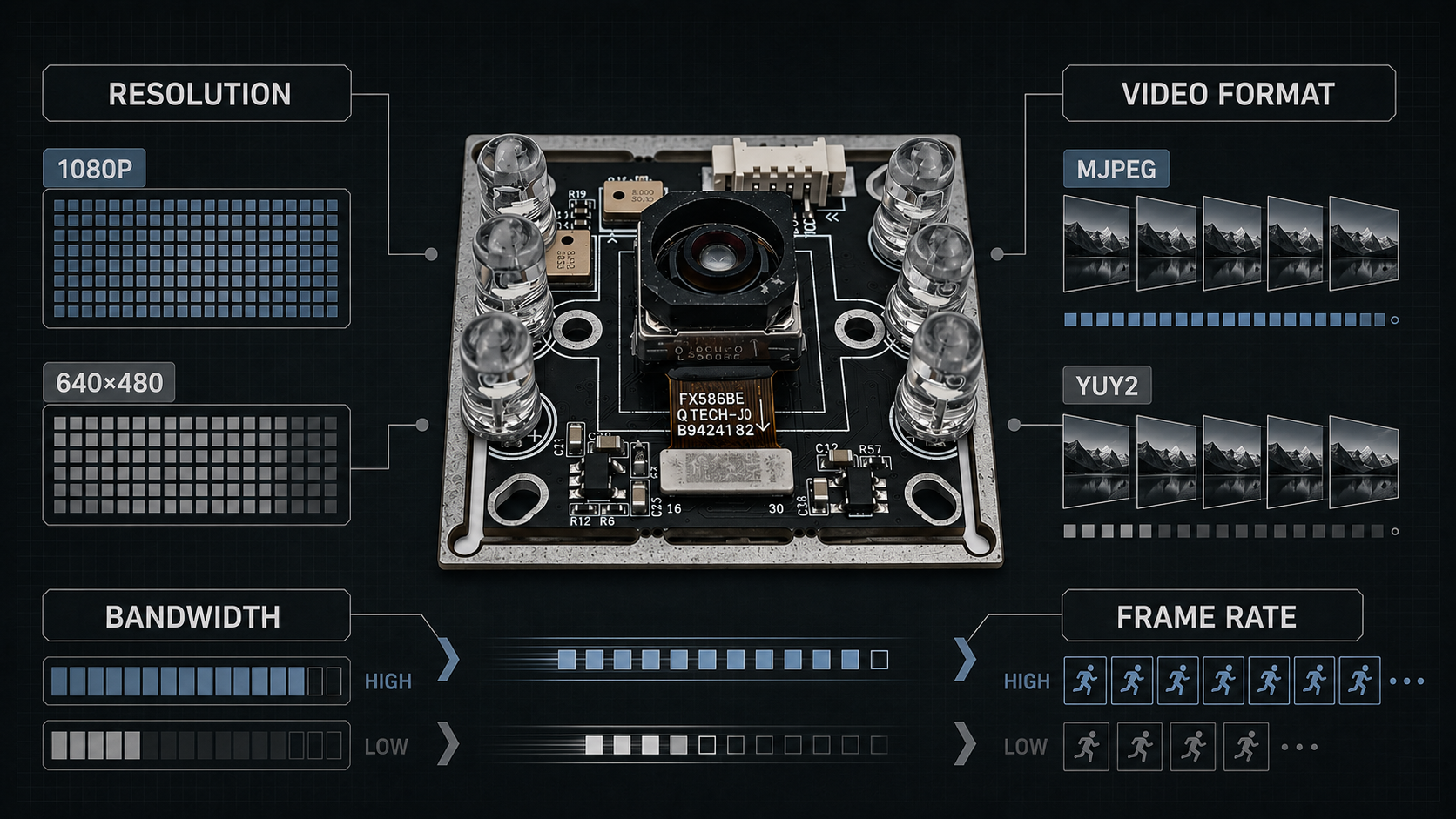

Resolution, frame rate, bit depth and video format together determine how much data must be transferred.
USB 2.0, USB 3.0 and MIPI interfaces have different transmission capabilities. Even when the theoretical interface speed appears sufficient, the full bandwidth may not be available to the camera.
Actual performance can be affected by:
A device may contain cameras, microphones, storage devices, touch panels and wireless adapters. Although they are connected through different physical ports, some may share the same internal USB controller.
When several devices transfer data at the same time, the camera may experience reduced frame rate, dropped frames, increased delay or intermittent disconnection.
For MIPI camera modules, the number of data lanes, lane speed, pixel format and main control platform must also match the required output.
The complete data path—not only the theoretical interface speed—must support the target resolution and frame rate.
Insufficient light is one of the most common causes of frame-rate reduction.

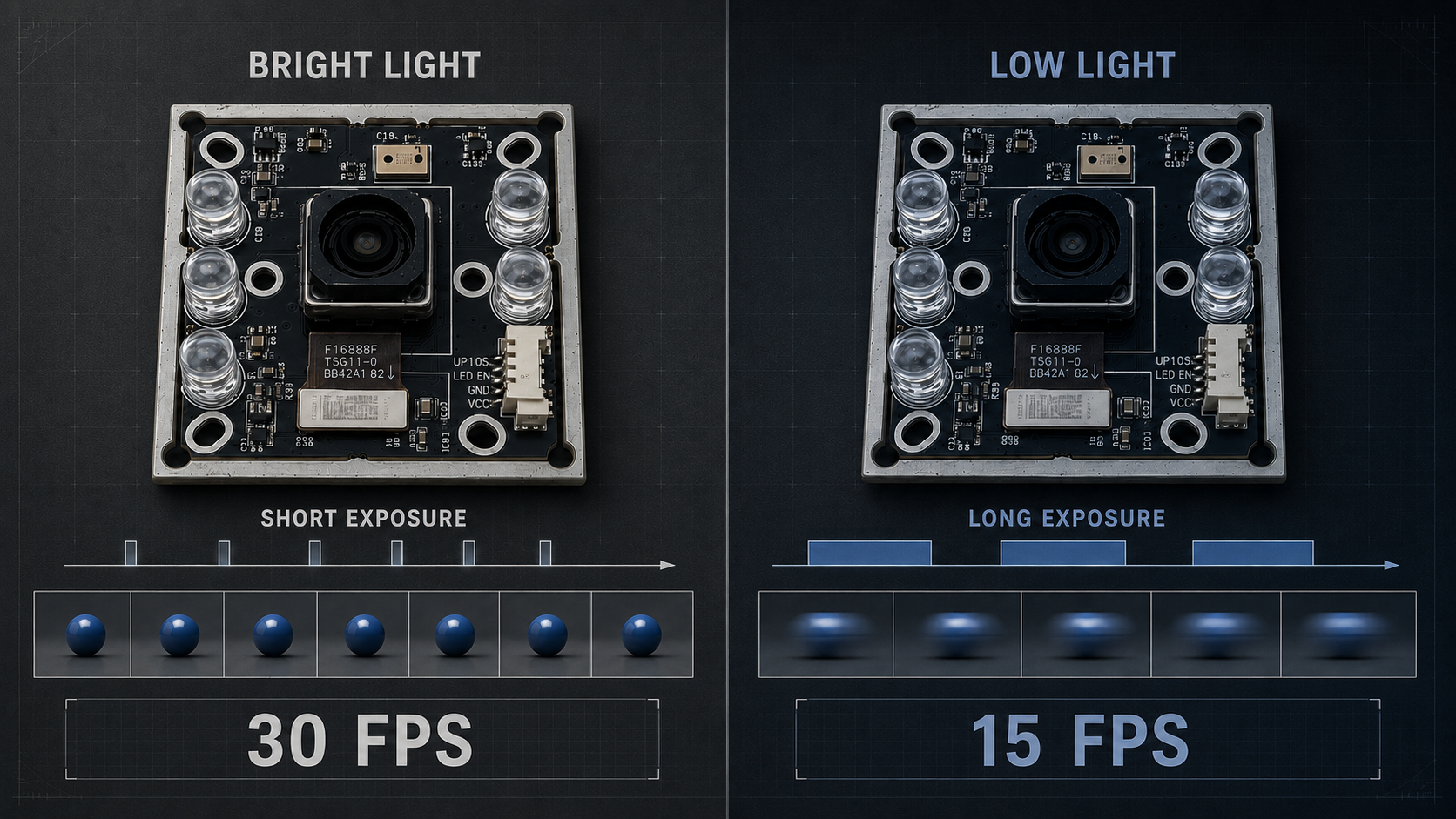

In a dark environment, automatic exposure may extend the exposure time so that the sensor can collect more light. If the exposure time becomes too long, the camera may no longer maintain its target frame rate.
At 30fps, approximately 33 milliseconds are available for each frame. When the exposure time approaches or exceeds this interval, the actual frame rate may fall and moving objects may appear blurred.
This explains why a camera can achieve 30fps under bright laboratory lighting but operate below 30fps in the customer’s actual environment.
Possible solutions include:
However, limiting exposure time may make the image darker or increase noise. The correct balance depends on whether the application prioritizes brightness, low noise, motion clarity or stable frame rate.

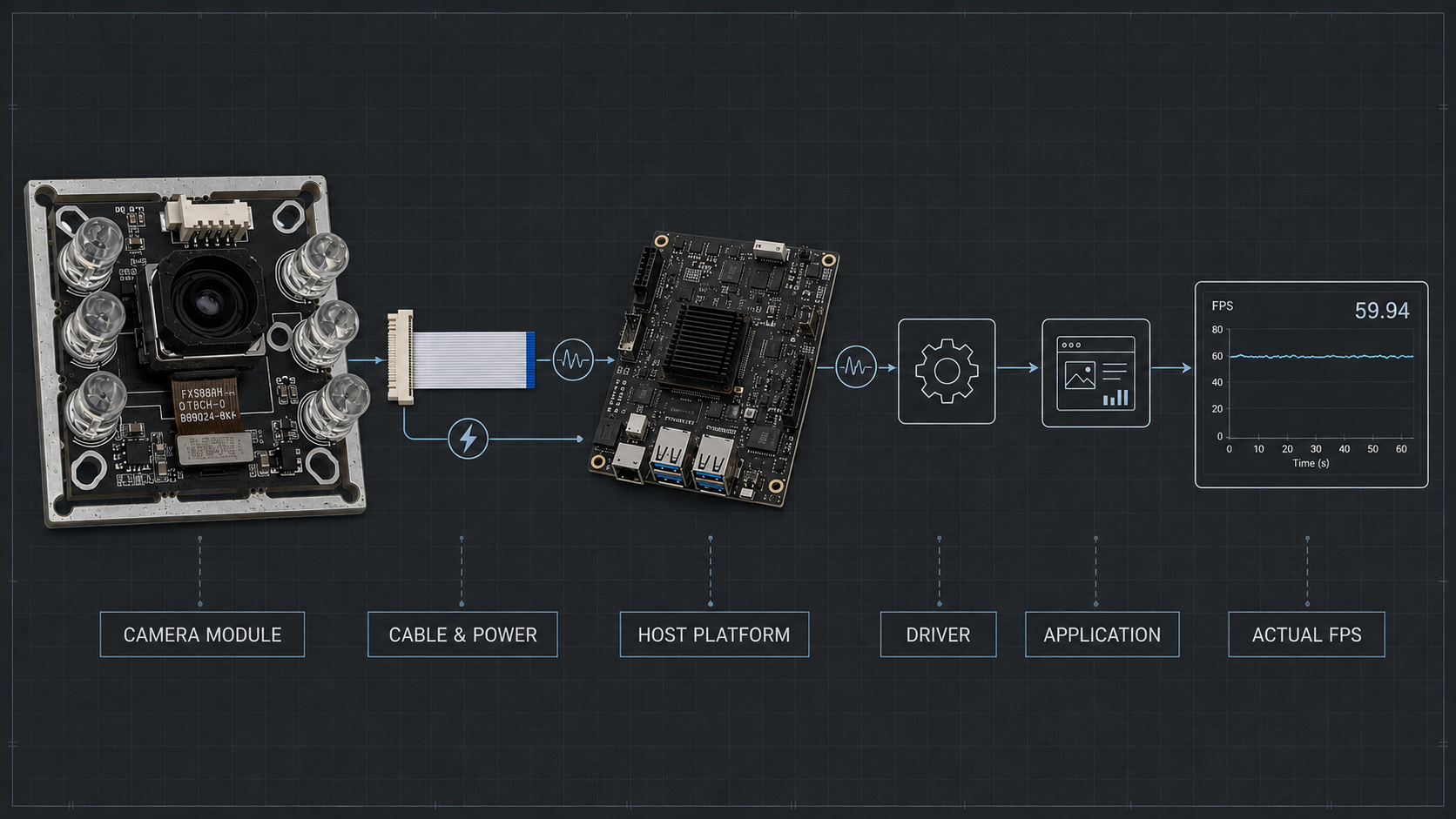

The camera module is only one part of the video system. The host platform must receive, decode, process, display or store every frame.
Frame-rate problems may occur when the platform has insufficient:
This is especially important when the device simultaneously performs AI recognition, barcode decoding, recording, streaming or image analysis.
The camera may output a stable 30fps while the application displays only 20fps because the processor cannot complete all operations in time.
ISP and software functions may also increase the processing load, including HDR, noise reduction, distortion correction, image rotation, digital stabilization, scaling and AI analysis.
In addition, some applications automatically lower the frame rate to reduce processor load, network traffic or recording file size. Video conferencing and streaming platforms may also adjust video performance according to network conditions.
Engineers should therefore distinguish between:
The frame rate shown by the final software does not always represent the camera module’s actual output.
A camera may work normally with a short test cable but become unstable after a longer or lower-quality cable is installed in the final device.
Poor signal integrity can cause transmission errors, dropped frames or USB reconnection. Excessive voltage drop may also affect the sensor, ISP or interface controller.
Important factors include:
For high-resolution or high-frame-rate applications, testing must use the actual cable, connector and power configuration intended for mass production.
Changing the cable after sample approval may change the performance and stability of the complete system.
Frame-rate testing should be performed in the final application environment.
Before mass production, testing should use the confirmed:
Testing should cover both bright and low-light environments because automatic exposure behavior may affect the actual frame rate.
If the product includes recording, streaming, AI processing or multiple USB devices, these functions should operate simultaneously during testing.
Engineers should also check dropped frames, processing time, end-to-end latency and long-term connection stability—not only the number displayed by the preview software.
Once the required performance is approved, the sensor, PCB, firmware, exposure settings, output format, cable, driver and software configuration should be locked for mass production.
To recommend a suitable camera module, the supplier should understand:
A request such as “We need a 4K 30fps camera” is not enough to confirm system compatibility.
A 4K camera used for video conferencing, industrial inspection or AI recognition may require different sensors, interfaces, compression formats and processing platforms.
The actual frame rate of a camera module is determined by the complete imaging and processing system.
Even when the sensor supports the target frame rate, the final result can still be limited by resolution, video format, interface bandwidth, exposure time, host performance, software, cables and power stability.
The best way to prevent frame-rate problems is to confirm the complete resolution, format and frame-rate combination before sample development, then test the camera under real lighting and operating conditions in the final device.
