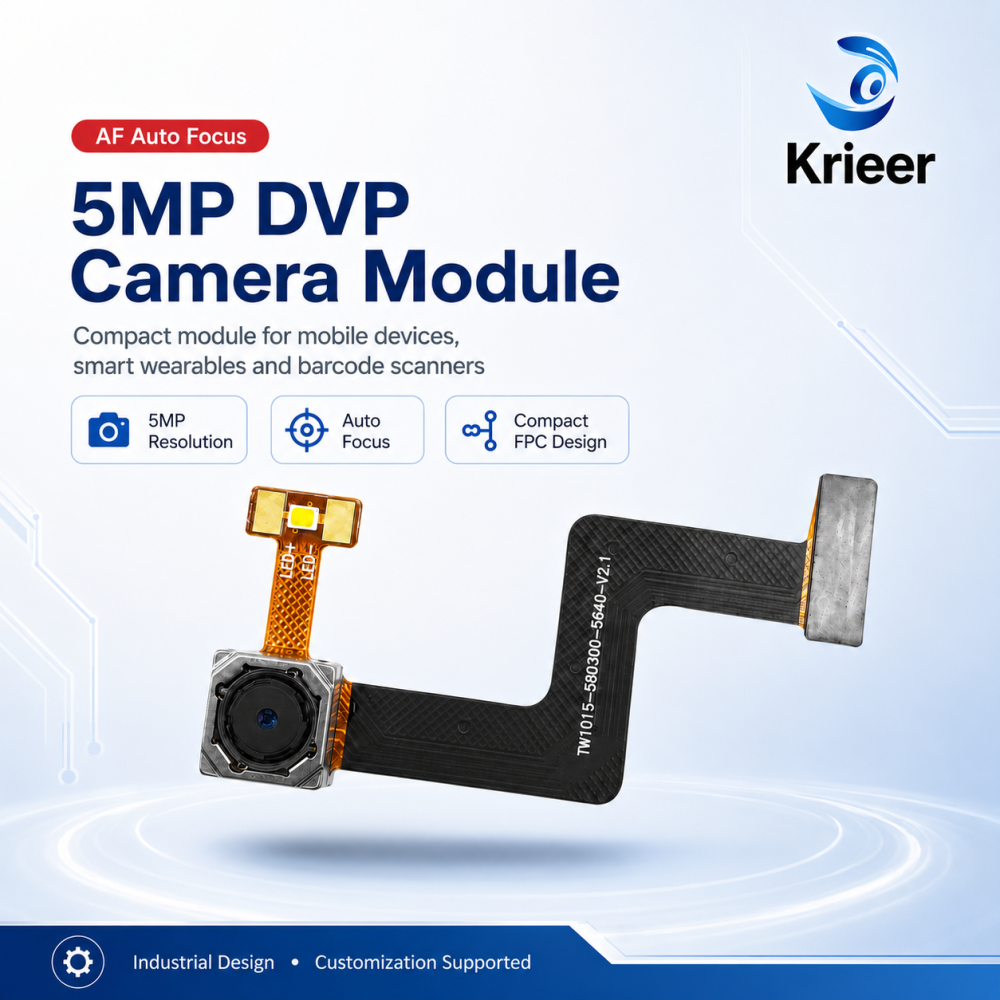

TW1015 5MP AF DVP Camera Module | OV5640 Auto Focus FPC Camera Module Product Overview
TW1015 is a 5MP autofocus DVP camera module designed for compact embedded visual devices. It adopts the OV5640 image sensor and supports autofocus, helping devices capture clearer images at different working distances.
With its FPC flexible cable structure and DVP interface, this module is suitable for mobile devices, smart wearable products, scanning equipment, handheld terminals and other compact smart hardware applications.
OEM/ODM customization is available for lens, FOV, FPC length, connector, module size, focusing distance and image tuning requirements.
Key Features
- 5MP high-definition image output
- OV5640 photosensitive sensor

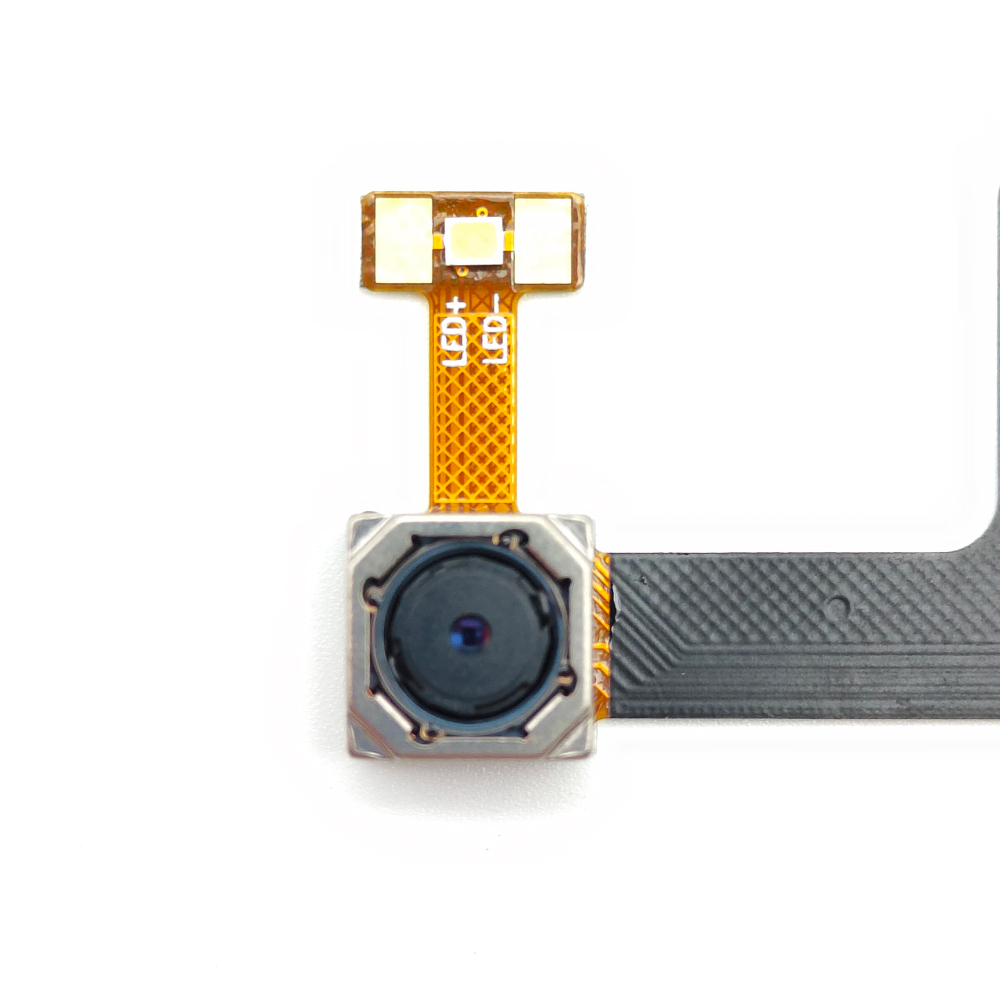

- Autofocus support for clearer image capture
- DVP interface for embedded device integration

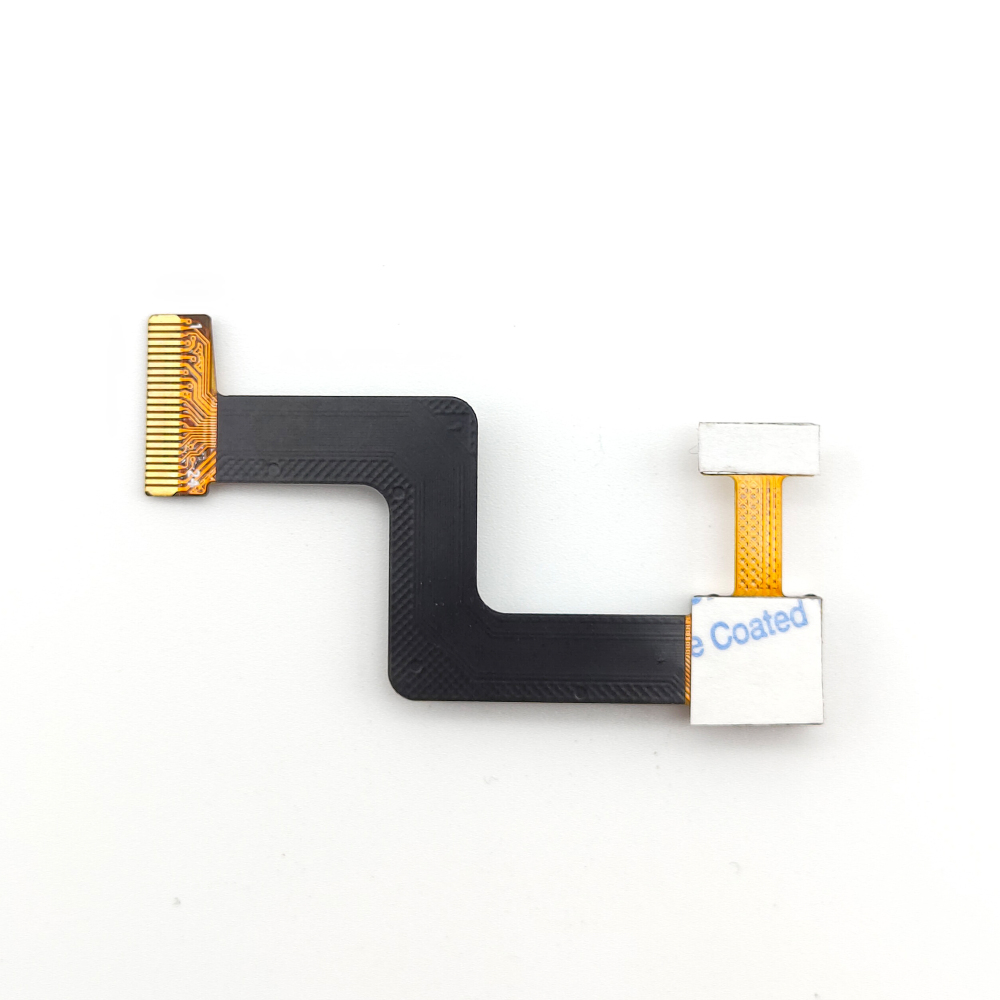

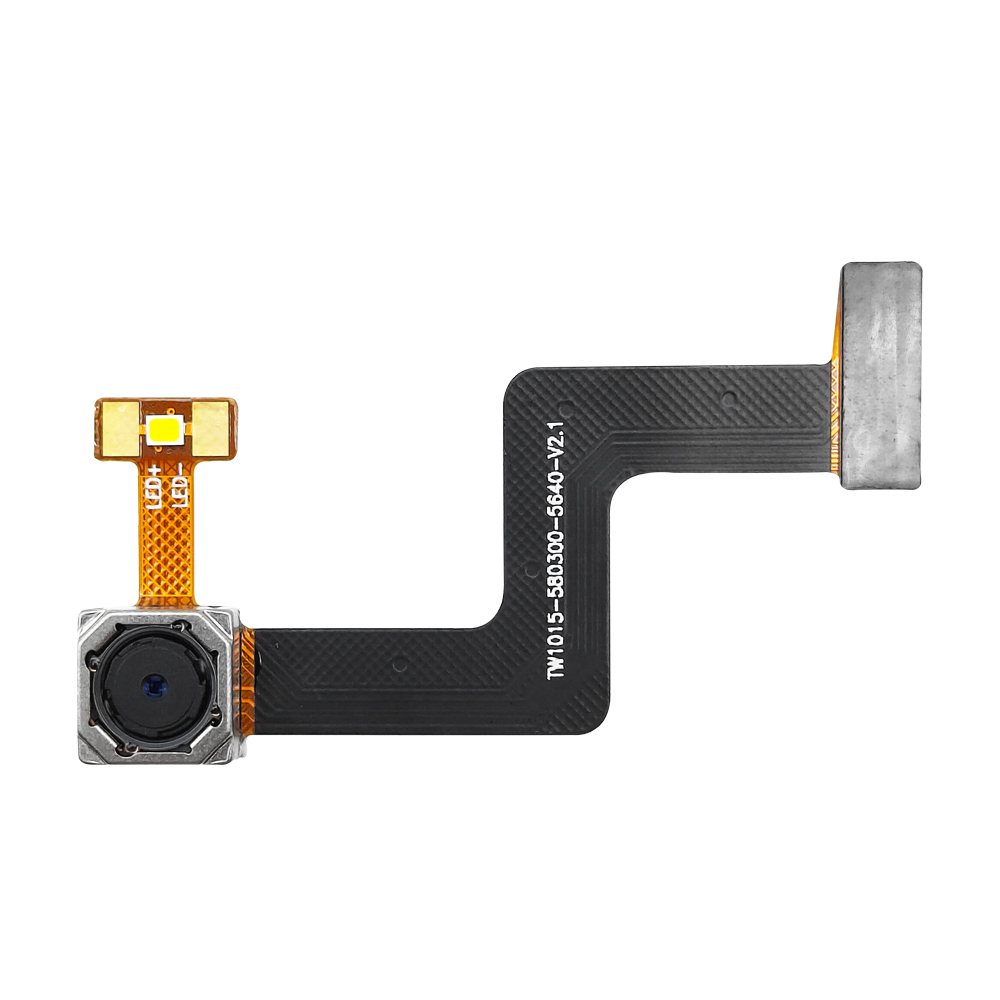

- FPC flexible cable structure
- Compact design for space-limited products
- Supports up to 2592 × 1944 image output
- Suitable for mobile, wearable and scanning device applications
- Lens, FOV, FPC length and connector can be customized
- OEM/ODM customization supported

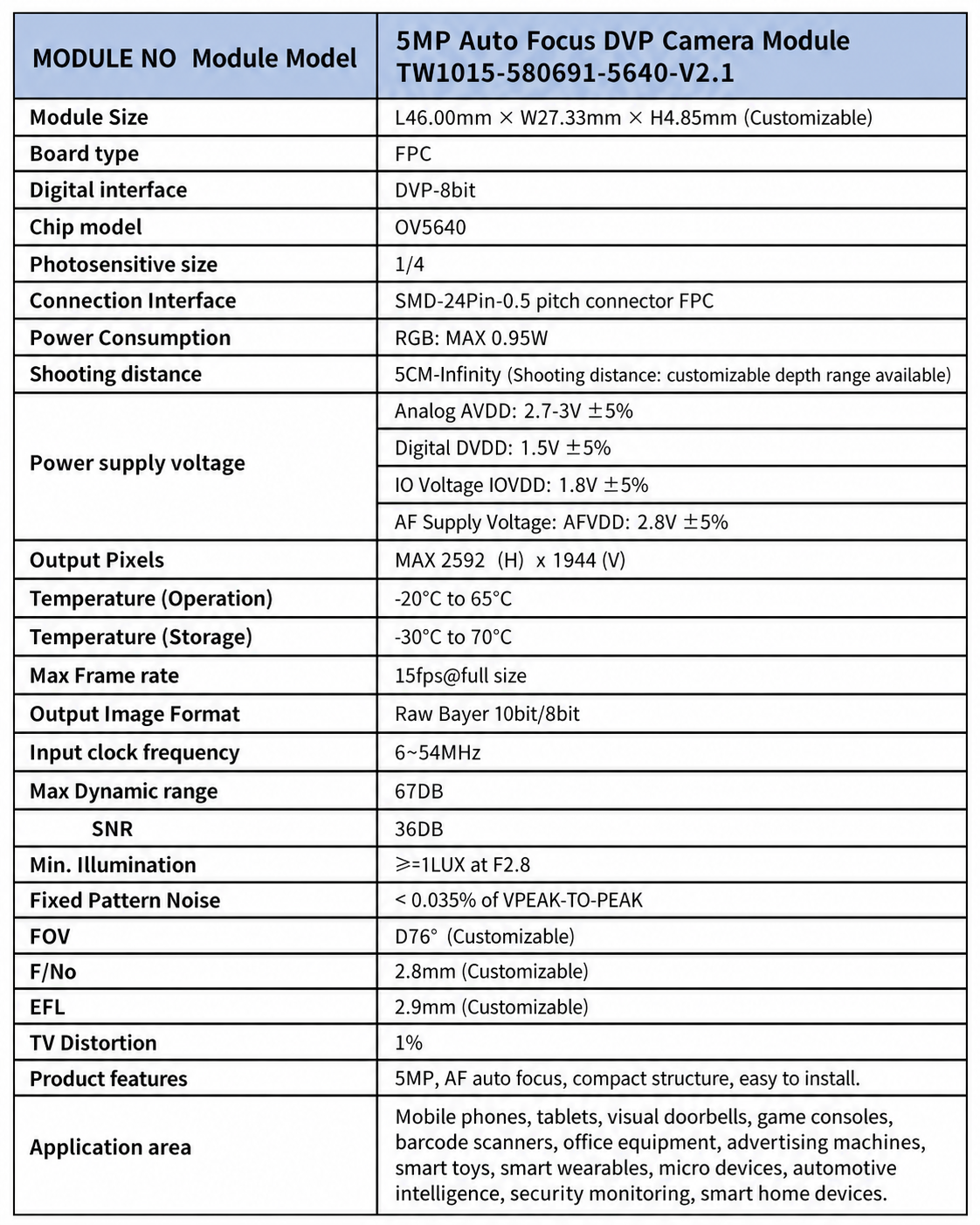

Main Specifications
- Model: TW1015
- Product Type: AF DVP Camera Module
- Sensor: OV5640
- Resolution: 5MP
- Max Image Output: 2592 × 1944
- Focus Type: Autofocus
- Interface: DVP
- Board Type: FPC
- FOV: 73°, customizable
- EFL: 3.8mm, customizable
- TV Distortion: 1%
- Module Size: Customizable
- Customization: Lens, FOV, FPC length, connector, focusing range and image tuning
Applications
Widely used in:
- Mobile device cameras
- Smart wearable devices
- Scanning equipment
- Barcode scanning devices
- Handheld terminals
- Smart hardware products
- Portable imaging devices
- Embedded visual systems
- Customized OEM/ODM camera products
