A custom camera module project often begins with a simple request:
“We need a 4K camera module.”
However, resolution alone is not enough to define a reliable solution. Two camera modules with the same resolution can perform very differently because of their lenses, interfaces, working distances, lighting conditions, host platforms and software environments.
If these details are not confirmed before prototyping, the sample may not fit the product, connect correctly to the mainboard or deliver the expected image quality.
A clear requirement list helps the camera module manufacturer evaluate feasibility, select suitable components and reduce repeated modifications. Here are ten important requirements to confirm before starting a custom camera module project.

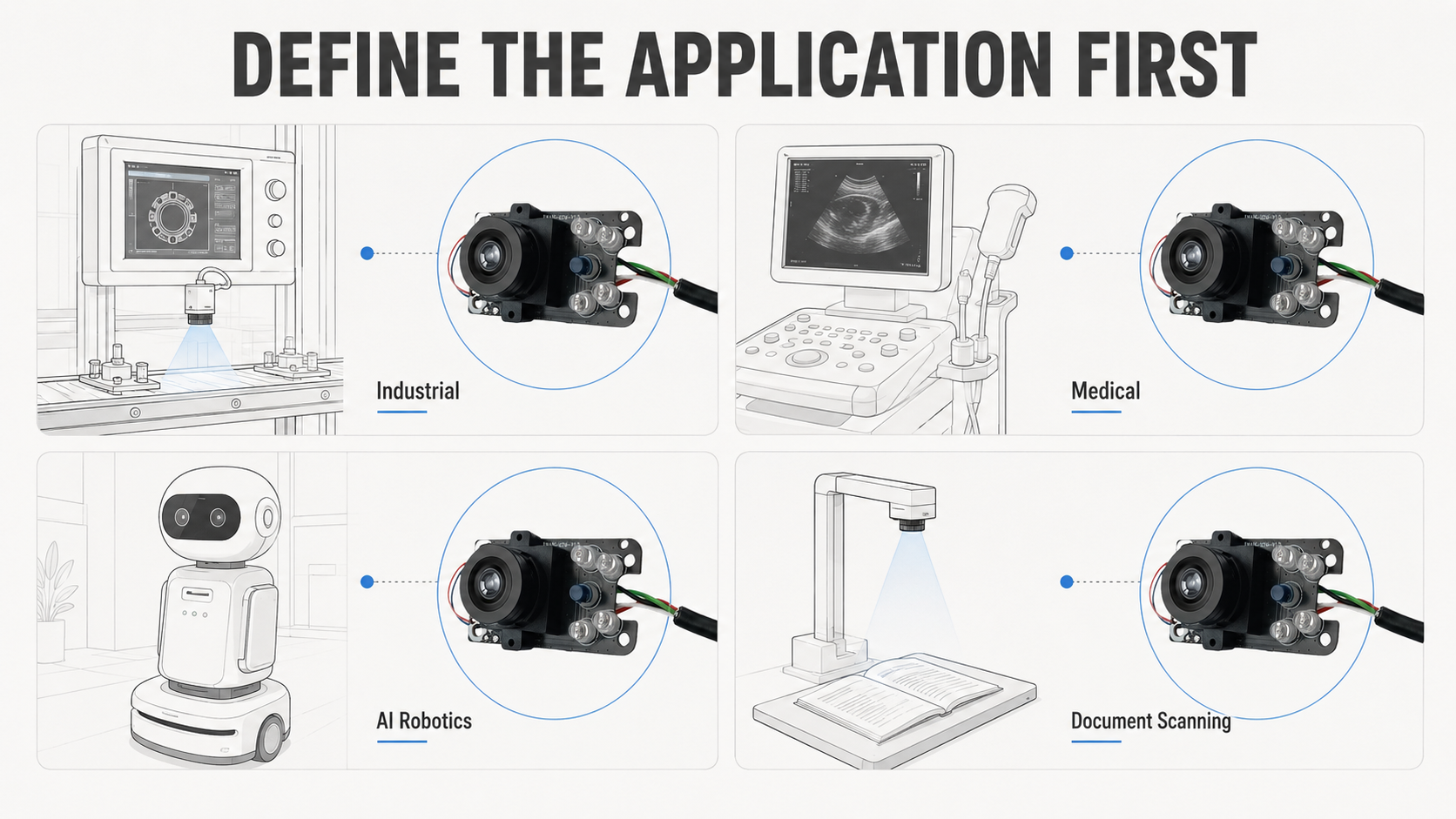

The first question should be: Where will the camera be used?
A camera module for a conferencing device has different requirements from one used in a document scanner, medical device, AI robot or industrial terminal.
The application affects:
For example, a document scanner may prioritize edge clarity and color accuracy. An AI robot may need low latency and stable images for recognition. A medical device may require accurate color reproduction and close-range focusing.
Product drawings, installation pictures or reference products can help the engineering team understand the application more accurately.
Resolution determines image detail, while frame rate determines how many images are captured each second.
Common video modes include:
Higher resolution is not always better. It can increase bandwidth, processing load, storage requirements, power consumption and total cost.
A document scanner may require high resolution but not a high continuous frame rate. An industrial motion application may benefit more from 60fps or 120fps than from 4K. A conferencing device must balance image quality with transmission stability and host performance.
Therefore, resolution and frame rate should always be confirmed together. Buyers should also clarify whether the requirement applies to preview, recording, still-image capture or all three.
The interface determines how image data is transmitted to the host system.
Common options include:
USB camera modules are widely used because UVC-compatible models can support plug-and-play operation on many Windows, Linux and other systems.
MIPI modules connect more directly to the processor platform and are suitable for compact, low-latency integration. However, compatibility depends on the processor, operating system, driver and software environment.
Interface selection should consider the required bandwidth, host mainboard, available connector, cable length and product architecture. A faster interface is not always necessary if a lower-cost option can already support the required video mode reliably.

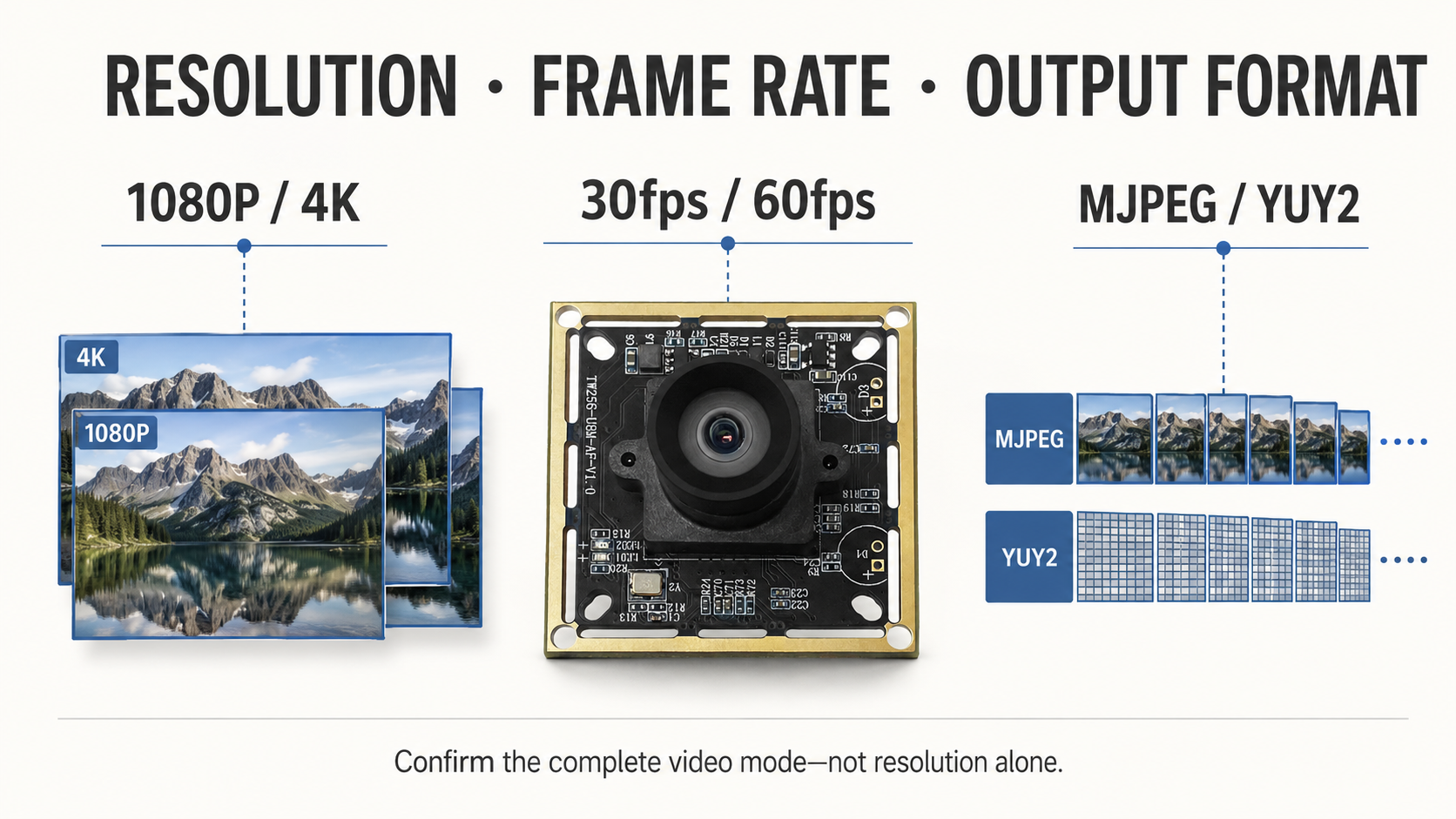

For USB camera modules, resolution and frame rate do not describe the complete video mode. The output format must also be confirmed.
Common formats include MJPEG, YUY2, H.264, NV12 and RAW.
MJPEG compresses each frame before transmission, reducing USB bandwidth requirements. This allows many USB 2.0 cameras to output 1080P at 30fps.
YUY2 uses less compression but requires considerably more bandwidth. The same module may support 1080P at 30fps in MJPEG but only a lower resolution or frame rate in YUY2.
The host software must also support the selected format. A complete video requirement should therefore include resolution, frame rate and output format rather than simply stating “1080P” or “4K.”

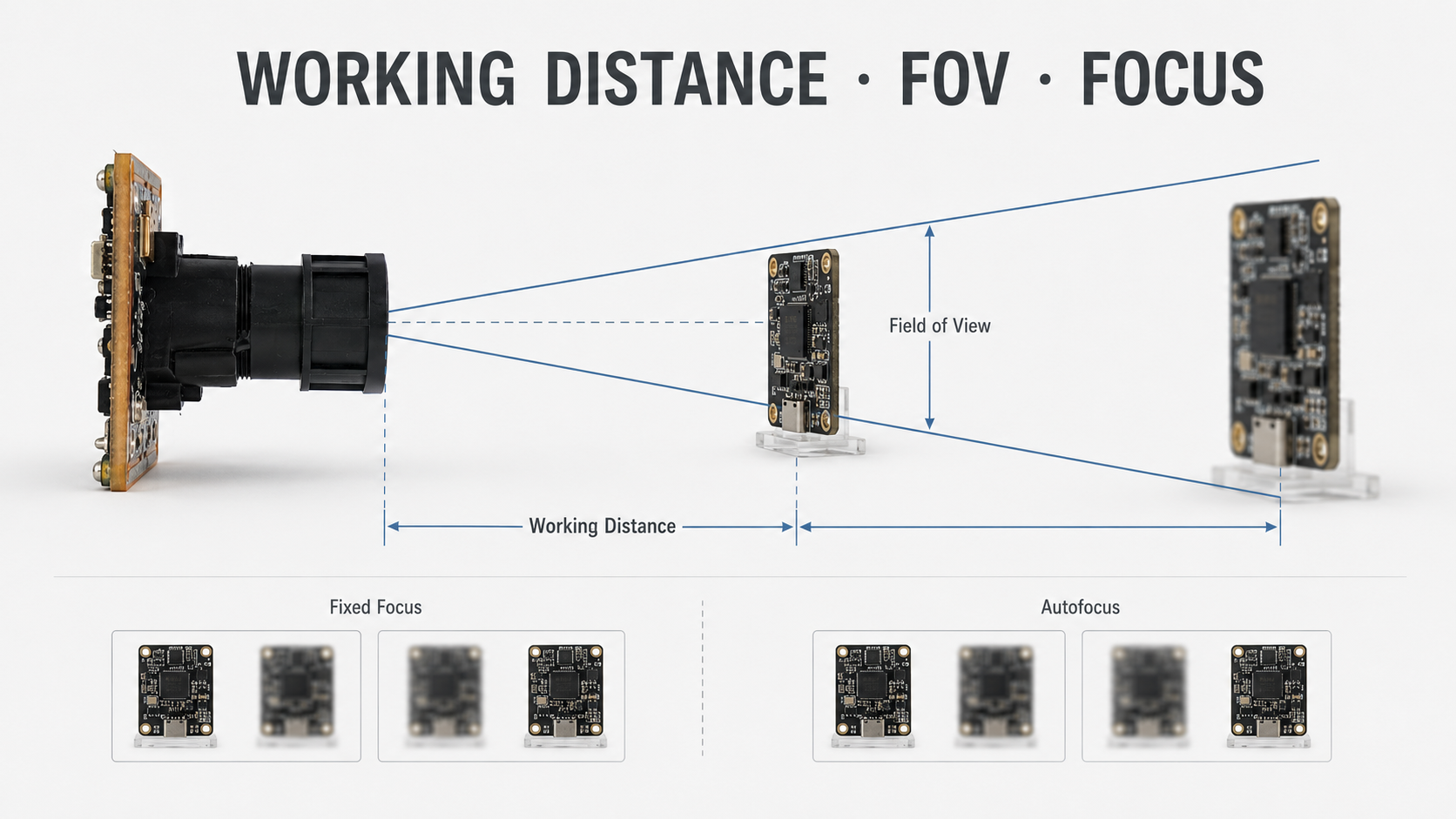

Lens selection determines how much of the scene the camera captures and whether the target remains clear.
The manufacturer needs to know:
A wide-angle lens captures a larger area but may introduce more edge distortion. A narrower FOV provides more detail on distant objects but covers less of the scene.
Instead of only requesting a specific FOV, describe the actual working condition. For example:
“At a distance of 50cm, the camera must capture an area approximately 60cm wide.”
This allows the engineering team to calculate a more suitable lens and reduce errors during prototyping.
Fixed-focus cameras are focused for a predefined distance range. They are generally simple, stable and cost-effective.
They are suitable when the target distance remains relatively constant and long-term stability is more important than flexible focusing.
Autofocus cameras can adjust when the target distance changes. They are often used in conferencing equipment, document presentation devices, barcode scanners and inspection systems.
For an autofocus project, buyers should confirm:
Choosing autofocus without a real need can increase cost and firmware complexity. Using fixed focus for a variable-distance application may result in blurred images.

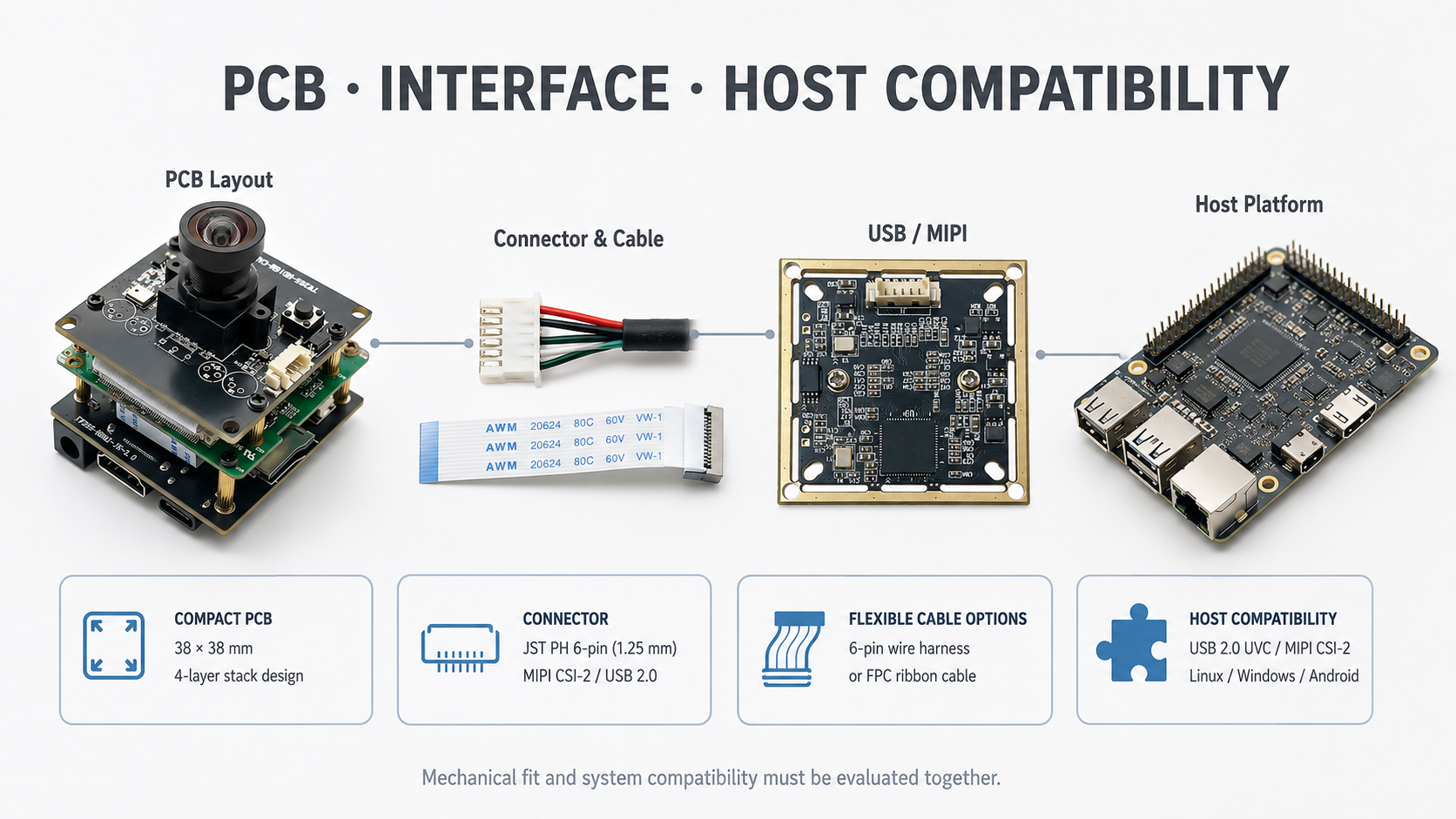

A technically suitable module must also fit inside the final product.
Important mechanical requirements include:
Even a small difference in the lens position can prevent the module from aligning with the product housing.
Cable length is also important, especially for high-bandwidth signals. A module may work with a short test cable but experience interference, frame loss or disconnection after a longer production cable is installed.
Mechanical design, electrical requirements and signal stability should be evaluated together.
Camera compatibility depends on the complete system, not only the module.
Before selecting hardware, confirm:
Standard UVC cameras usually work well with Windows and Linux. Android compatibility may depend more heavily on the processor platform and system configuration.
MIPI projects require early confirmation of the processor, input port, supported sensor, device tree and driver environment.
Multi-camera systems also need special attention because several USB ports may share one host controller. Each camera may work correctly alone but encounter bandwidth problems when multiple cameras operate simultaneously.
“Clear image quality” is too subjective for engineering evaluation. Image expectations should be converted into specific requirements, such as:
A camera installed near a window may need stronger WDR. A retail scanner may need stable color under different indoor lights. A night-vision device may require an IR-sensitive sensor and infrared illumination.
Reference images showing acceptable and unacceptable results can help ISP engineers understand the desired image style.
Final image quality is produced by the complete system, including the sensor, lens, ISP, illumination, firmware and housing design.
Commercial requirements can also affect the technical solution.
Before prototyping, clarify:
A solution suitable for ten prototypes may not be economical for a production order of 100,000 units. A low-cost component may also be unsuitable for industrial temperatures or long-term supply.
Expected order volume helps the manufacturer evaluate PCB design, component availability, tooling and customization cost. Certification requirements such as CE, FCC and RoHS should be considered early because they may affect the hardware, cable or housing.
Many project delays are caused by incomplete requirements rather than technical limitations.
Common mistakes include:
These problems may result in new samples, PCB revisions, lens replacement or firmware retuning. Confirming the requirements early usually saves more time than rushing into the first prototype.
Before contacting a camera module manufacturer, prepare:
If some specifications are still uncertain, provide the application, target performance and physical limitations first. An experienced supplier can help evaluate the remaining options.
A successful custom camera module must work with the host platform, software, product housing, lighting environment and commercial requirements.
Krieer provides camera module development and OEM/ODM support for industrial equipment, medical devices, educational hardware, AI robots, document scanners, smart terminals and other embedded imaging products.
Our customization capabilities include image sensors, lenses, FOV, focus methods, PCB dimensions, connectors, cables, firmware, USB device information and ISP image tuning.

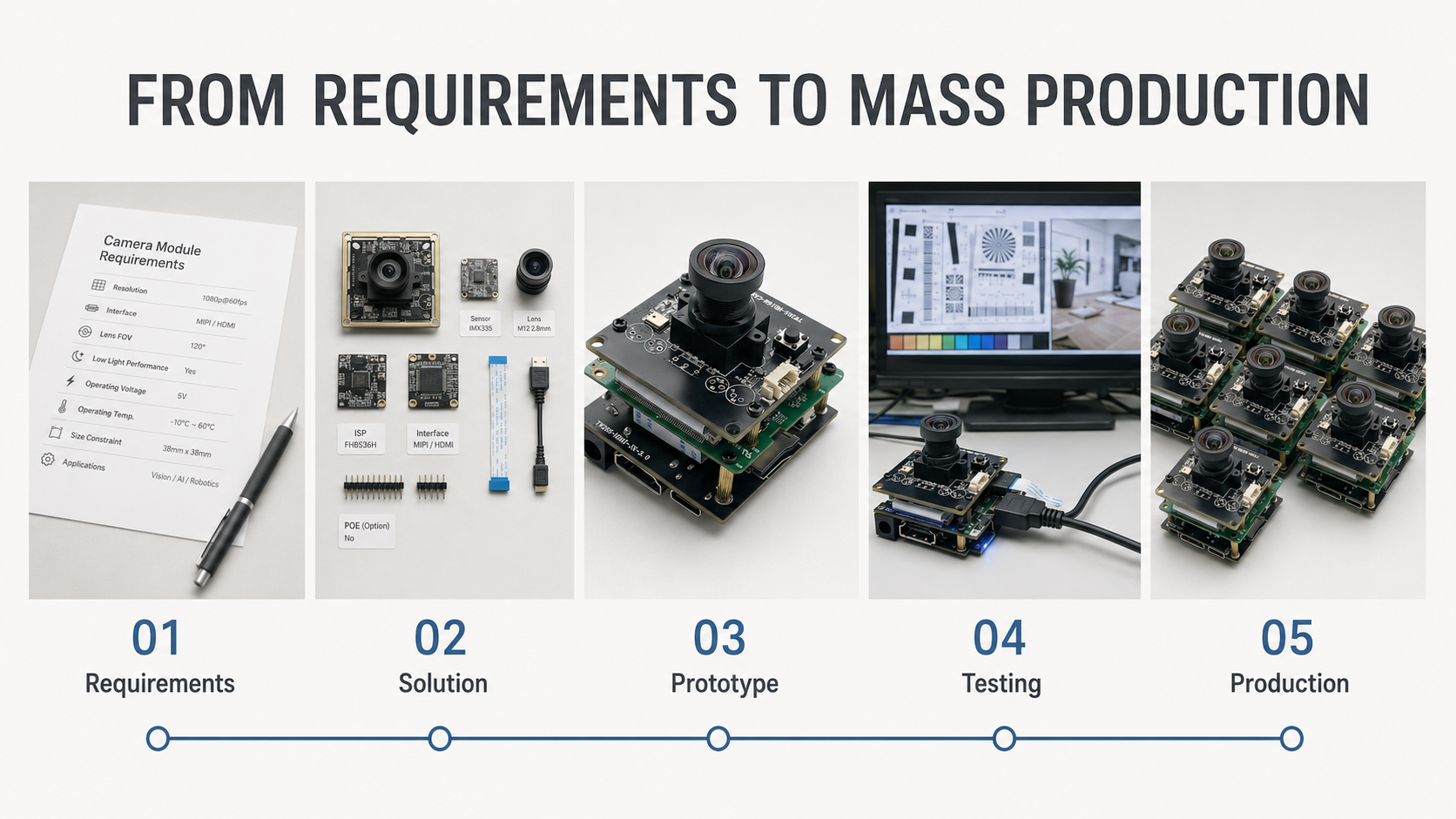

Customers can begin with requirement evaluation and prototype samples before moving to mass production. Confirming these ten requirements can reduce unnecessary revisions, improve compatibility and shorten the path from an initial idea to a production-ready camera solution.
