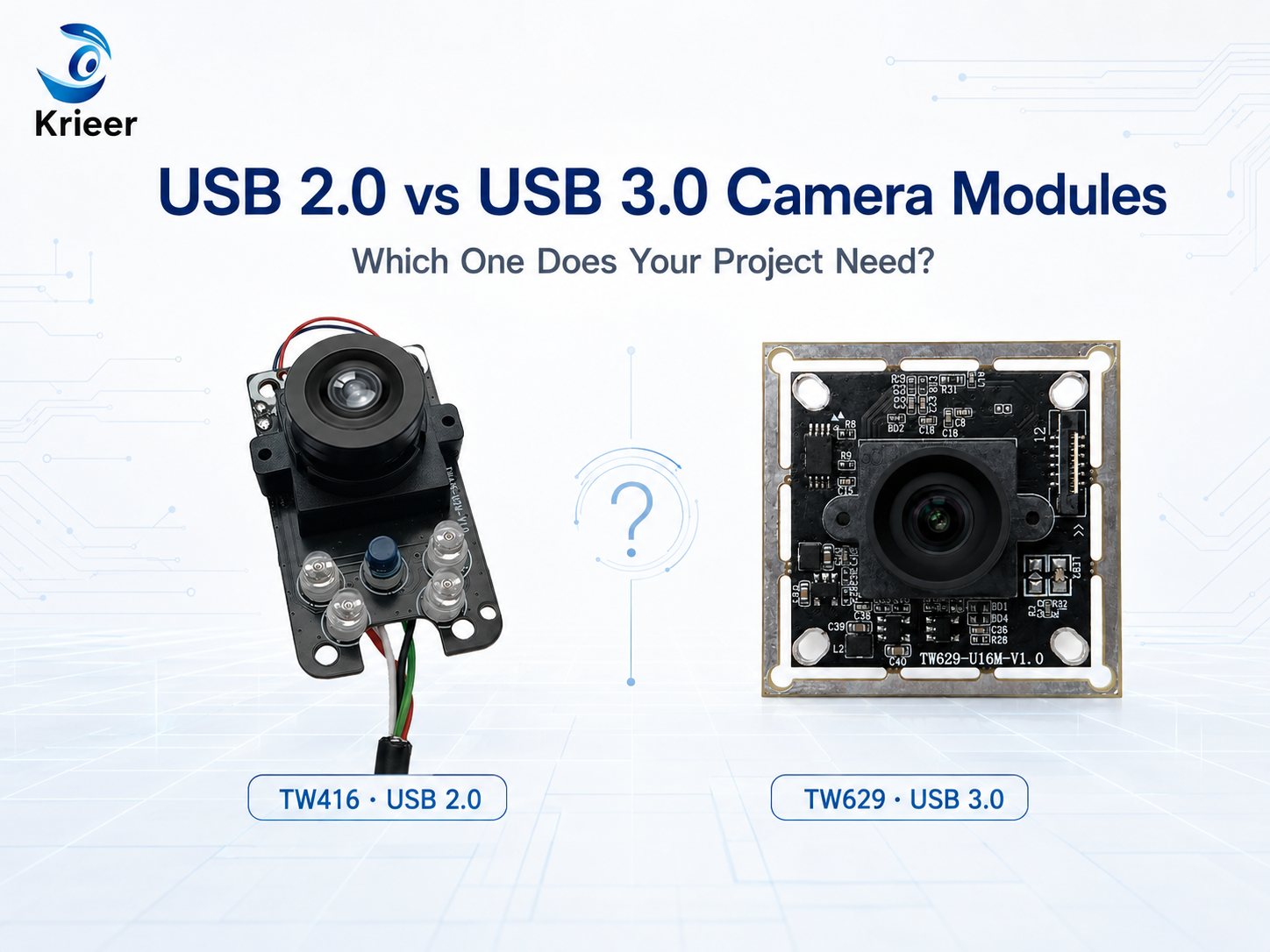

As cameras become increasingly common in industrial equipment, smart terminals, medical devices, document scanners, conference systems and AI-powered products, resolution is no longer the only specification that matters.
Many projects now require 4K video, higher frame rates, lower latency or more detailed images for visual analysis. These requirements make the USB interface an important part of camera module selection.
USB 2.0 remains widely used because it is cost-effective, compatible with many host devices and sufficient for numerous 720p and 1080p applications. USB 3.0 offers substantially more bandwidth and is better suited to 4K, high-frame-rate and low-compression video.
However, USB 3.0 is not automatically the right choice for every project. The decision should be based on resolution, frame rate, video format, host platform, cable design and total product cost.

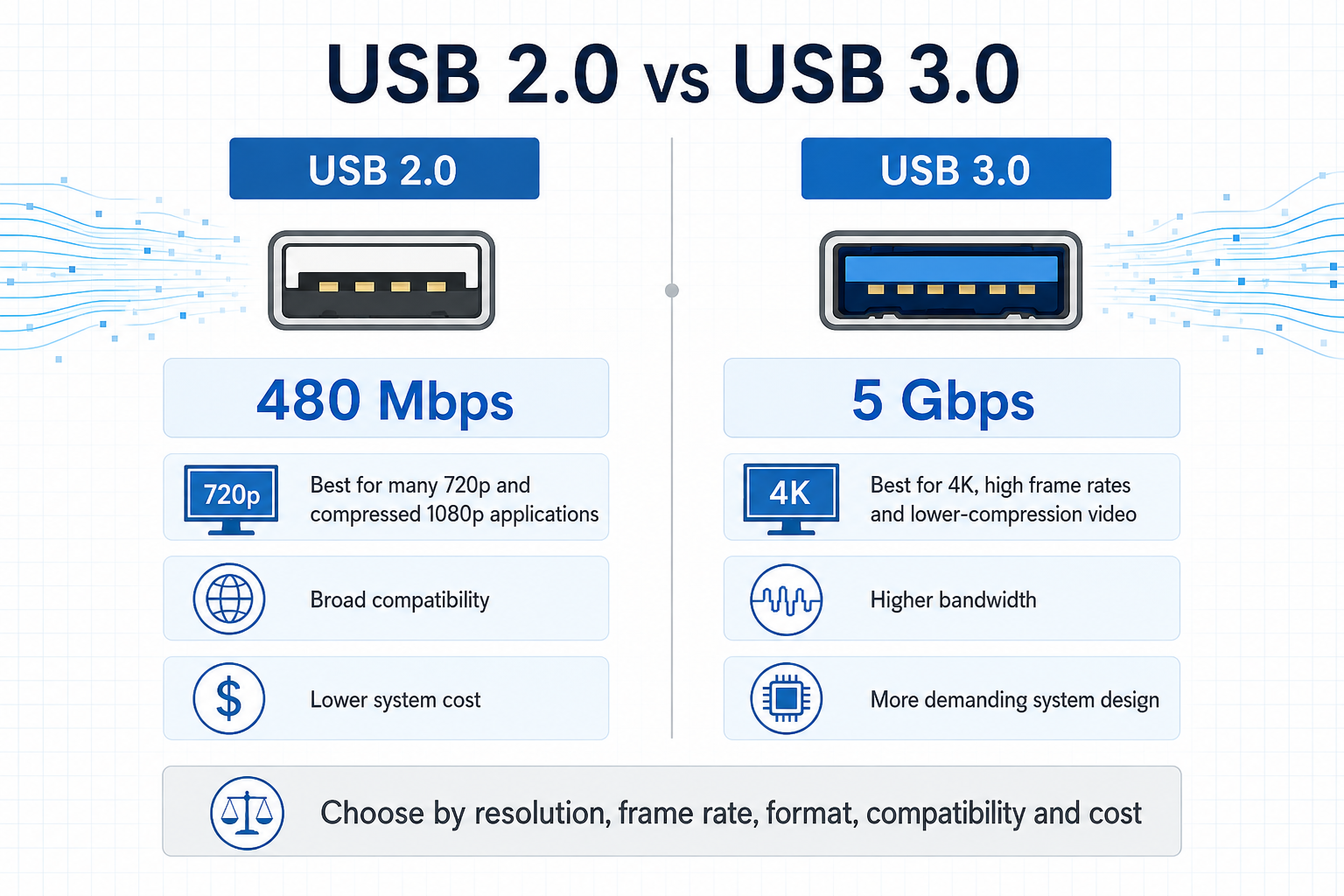

The most important difference between USB 2.0 and USB 3.0 is data-transfer bandwidth.
USB 2.0 has a theoretical signaling rate of 480 Mbps. Its actual usable bandwidth is lower because part of the capacity is consumed by protocol overhead and system operations.
USB 3.0, commonly known today as USB 3.2 Gen 1, offers a theoretical signaling rate of up to 5 Gbps.
This additional bandwidth makes it easier to transmit higher-resolution, higher-frame-rate or less-compressed video.
|
Feature |
USB 2.0 |
USB 3.0 |
|
Theoretical signaling rate |
480 Mbps |
5 Gbps |
|
Common video applications |
720p and compressed 1080p |
High-frame-rate 1080p and 4K |
|
Solution cost |
Lower |
Higher |
|
PCB and cable requirements |
Simpler |
More demanding |
|
Host compatibility |
Very broad |
Requires USB 3.x support |
Interface speed alone does not determine camera performance. The sensor, USB controller, firmware, output format and host processor must all support the required video mode.

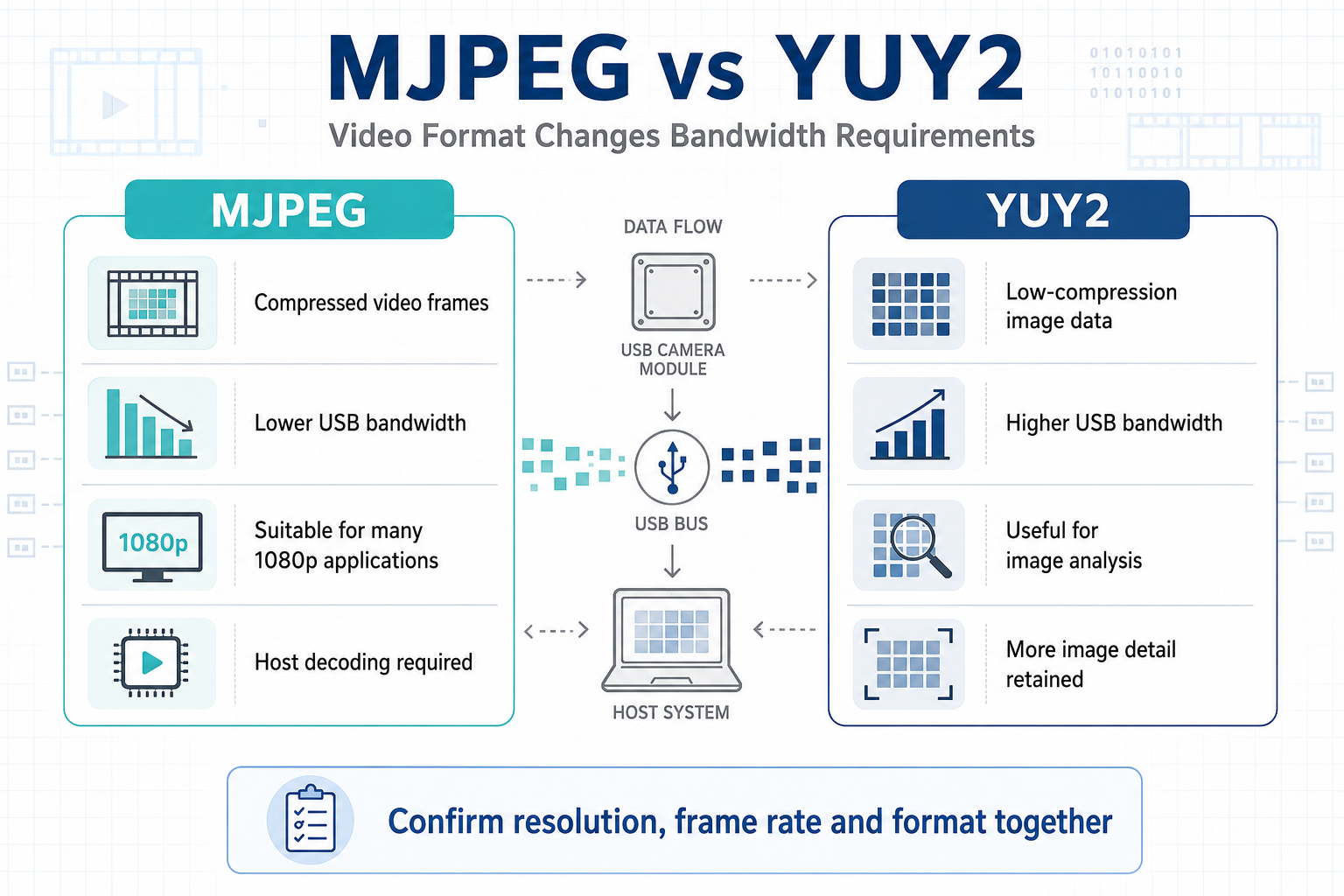

Resolution and frame rate are only part of the bandwidth calculation. The video output format can significantly change how much data the USB connection must carry.
MJPEG compresses each video frame before transmission. Because the data is compressed, higher-resolution video can be transmitted through a more limited USB connection.
This is why many USB 2.0 camera modules can provide 1080p at 30 fps in MJPEG.
MJPEG is commonly used in:
However, the host must decode the MJPEG stream, and compression may remove image details that are important for certain machine-vision applications.
YUY2 carries much less compressed image data and therefore requires considerably more bandwidth.
For example, 1080p YUY2 at 30 fps requires more bandwidth than USB 2.0 can normally provide in practice. The same USB 2.0 camera may support 1080p at 30 fps in MJPEG but only a lower frame rate or resolution in YUY2.
YUY2 can be useful for industrial inspection, image analysis and applications that are sensitive to compression artifacts.
Therefore, a specification such as “1080p camera” or “4K camera” is incomplete unless the frame rate and output format are also confirmed.

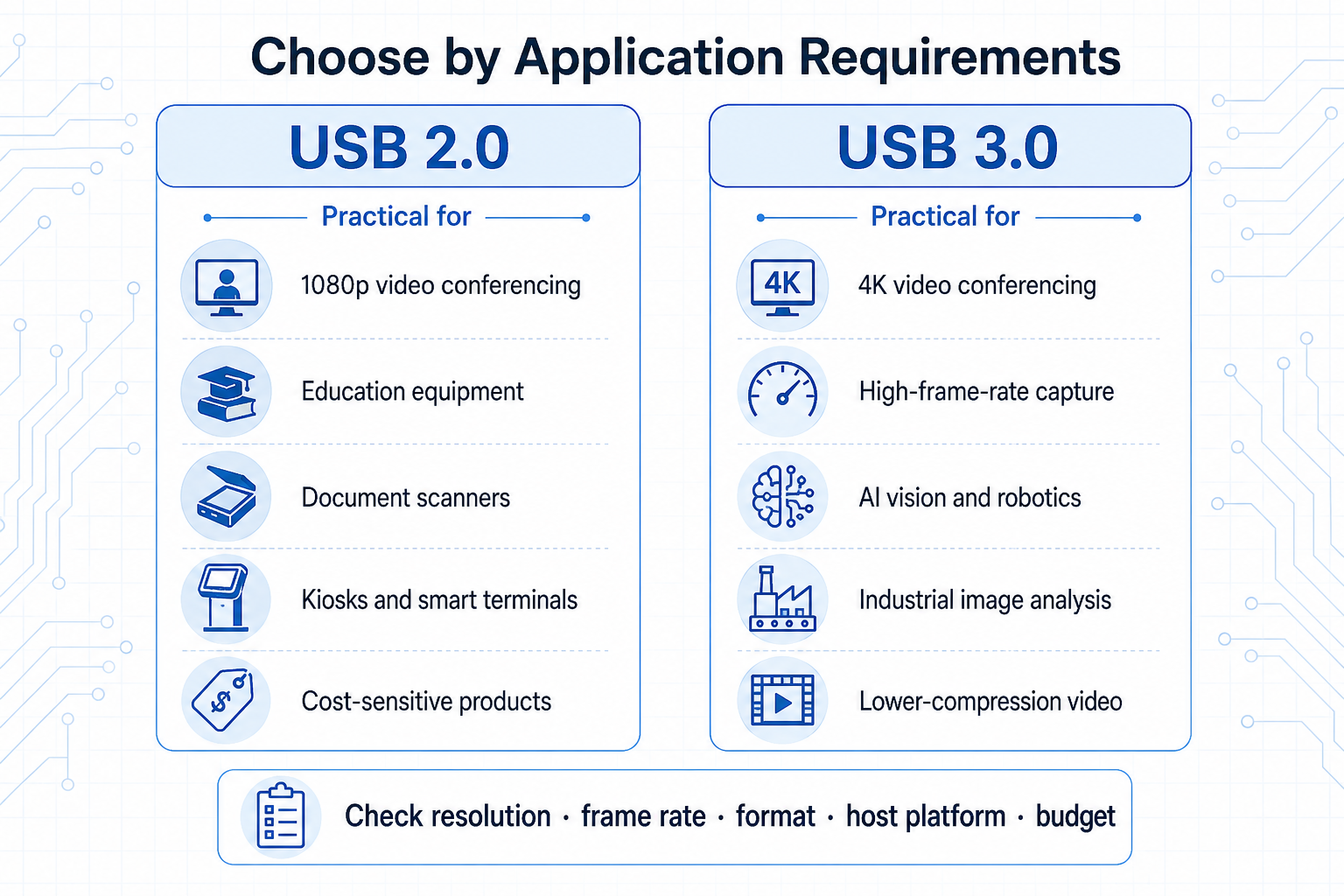

USB 2.0 is still a practical choice for many current products. It should not be considered outdated simply because USB 3.0 is faster.
USB 2.0 may be sufficient when a project requires:
Typical applications include educational equipment, document scanners, access-control terminals, kiosks, standard conference products and general image-capture devices.
For high-volume products, the lower cost of the controller, PCB, connector and cable can make a meaningful difference to the total product cost.
The important point is to test the exact video mode. A module that supports 1080p does not necessarily support every 1080p frame-rate and format combination.
USB 3.0 becomes more valuable as image requirements increase.
It is generally the better choice for projects requiring:
AI terminals, industrial inspection systems and intelligent automation equipment increasingly rely on detailed images for recognition and analysis. Excessive compression may remove information that an algorithm needs.
USB 3.0 provides more flexibility for higher resolutions, faster frame rates and lower-compression formats. However, the host processor must still be able to receive, decode and process the video efficiently.
A USB 3.0 camera will not solve a performance problem if the host platform is too slow.
Not always, but USB 3.0 is usually the safer choice for demanding 4K projects.
Some USB 2.0 cameras can transmit 4K video through MJPEG at a limited frame rate or a higher compression ratio. This may be acceptable for still-image capture or applications where smooth video is not essential.
USB 3.0 is more appropriate when the project requires:
For a commercial 4K product, it is not enough to confirm that a module can output a 4K image. Frame rate, compression quality, latency, host decoding load and long-term stability should also be evaluated.
USB 3.0 provides higher bandwidth, but it also increases design complexity and cost.
A USB 3.0 camera may require a more complex PCB layout, better impedance control, additional connector pins, higher-quality cables and more careful electromagnetic shielding.
Cable quality is especially important. A camera may work normally with a short testing cable but experience dropped frames or disconnections when installed with a longer internal cable.
If a device only requires compressed 1080p at 30 fps, USB 3.0 may increase the project cost without creating a noticeable benefit for the end user.
The best interface is therefore not always the fastest one. It is the interface that reliably meets the actual product requirements.
Camera performance also depends on the host platform.
Before selecting the module, confirm the motherboard, operating system, USB port, supported video formats and decoding capability. Windows and Linux generally offer broad UVC support, while Android compatibility may depend more heavily on the motherboard, system configuration and application.
Multiple-camera systems require additional testing because several USB ports may share the same internal host controller. Connecting several high-resolution cameras can cause reduced frame rates, dropped frames or unstable operation.
Whenever possible, testing should use the final motherboard, cable and software environment.
For standard 1080p video at 30 fps using MJPEG, USB 2.0 is usually sufficient. USB 3.0 is more suitable for 4K conferencing and high-frame-rate video.
USB 2.0 can support video preview and still-image capture. USB 3.0 may be preferable for rapid high-resolution capture or continuous 4K transmission.
USB 3.0 is often recommended when algorithms require detailed images, faster frame rates, lower compression or reduced latency.
The decision depends on resolution, color accuracy and whether the system analyzes live video. Stable high-resolution, low-compression applications may benefit from USB 3.0.
If the product only requires 720p or compressed 1080p, USB 2.0 can reduce cost and simplify integration without sacrificing the performance users actually need.
Before selecting or customizing a USB camera module, confirm:
A clear requirement list can prevent both insufficient bandwidth and unnecessary hardware cost.
Krieer provides USB 2.0 and USB 3.0 camera modules for industrial equipment, educational hardware, document scanners, medical devices, smart terminals and embedded vision products.
Customization can include the image sensor, resolution, lens, field of view, focus type, PCB dimensions, cable, connector, firmware, USB device name and ISP image tuning.
USB 2.0 remains suitable for many cost-sensitive 720p and 1080p products. USB 3.0 provides greater performance flexibility for 4K, high-frame-rate, low-compression and AI vision applications.
The right choice should balance bandwidth, image quality, host compatibility, stability and total project cost. Confirming these requirements before prototyping can reduce compatibility problems and shorten product development time.
