A camera may produce a clear image in a bright office but show noise, blur or missing details when the light becomes weaker.
Many buyers try to solve this problem by choosing a higher-resolution camera. However, moving from 2MP to 4K does not automatically improve low-light performance.

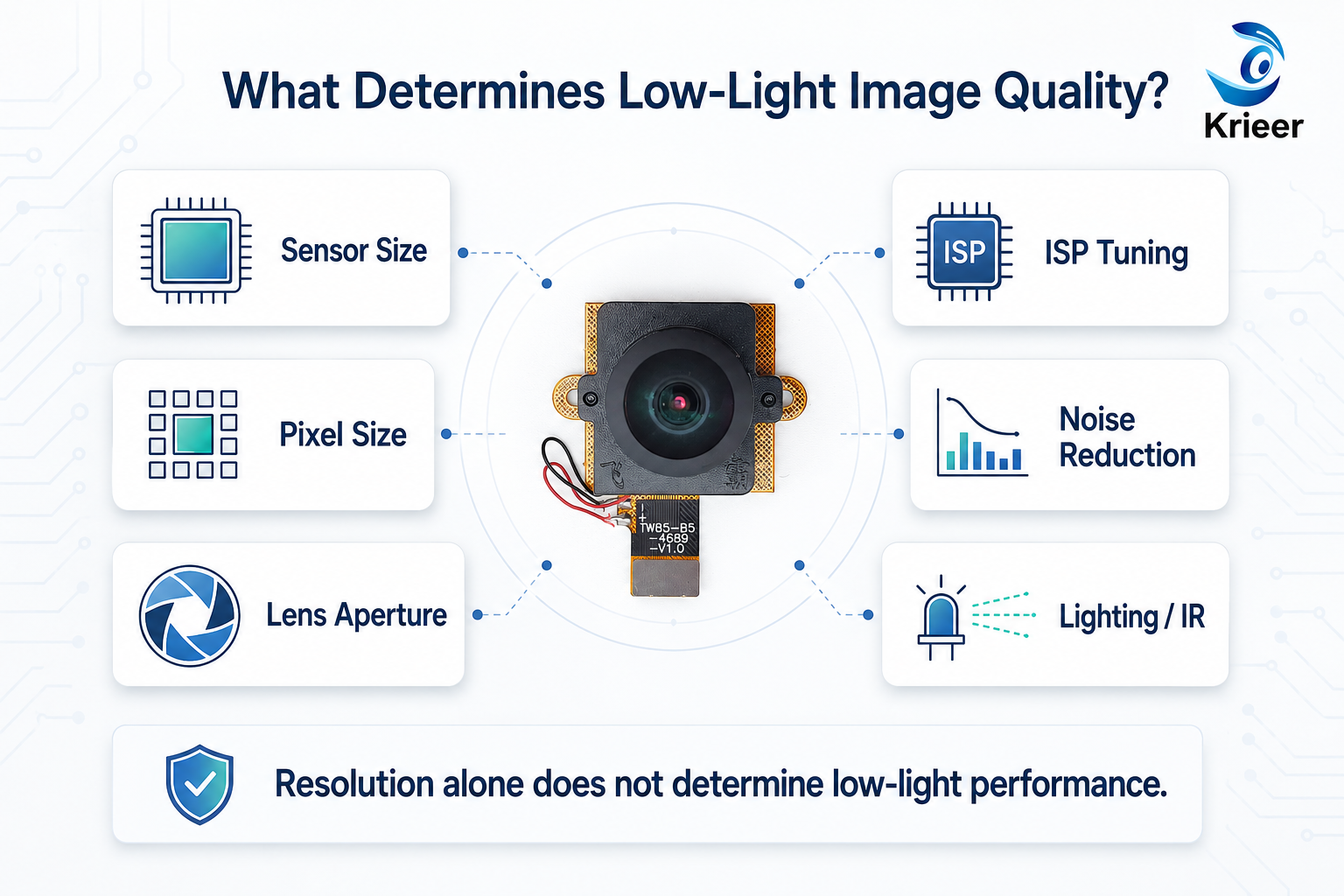

A reliable low-light camera solution depends on the complete imaging system:
Sensor + Pixel Size + Lens + ISP + Firmware + Lighting
This guide explains the most important factors and helps you choose a suitable low-light camera module for your device.
Resolution tells you how many pixels an image contains, but it does not tell you how much light each pixel can capture.
When two sensors have a similar physical size, the higher-resolution sensor usually contains smaller pixels. Smaller pixels may collect less light, which can cause:
For barcode scanning, robotics or industrial inspection, a clean 2MP image may be more useful than a noisy 4K image.
Choose the resolution according to the details your device needs to recognize—not simply the highest specification available.
The image sensor is one of the most important parts of a low-light camera.
A larger sensor and larger pixels can generally collect more light. However, the final result also depends on the sensor technology, lens and ISP tuning.
The lens controls how much light reaches the sensor. A lower F-number indicates a larger aperture. For example, an F1.8 lens generally allows more light to enter than an F2.8 lens under similar conditions.
However, a larger aperture may also affect depth of field, edge sharpness and focus tolerance. The lens must match:
Instead of comparing specifications only, test the camera under the actual lighting and working-distance conditions.
These solutions are designed for different environments.
A low-light camera uses a sensitive sensor, suitable lens and optimized image processing to produce a usable image when visible light is limited.
It still needs some visible light to maintain a colour image.
A starlight camera is designed to maintain a colour image under very low illumination.
However, different manufacturers may use different testing standards. When evaluating a starlight camera, confirm:
A bright image is not useful if a long exposure causes serious motion blur.
An infrared camera uses IR LEDs to illuminate environments with little or no visible light.
A day/night camera can use an IR-cut filter to produce more accurate colours during the day and switch to infrared-sensitive black-and-white imaging at night.
Infrared night vision is commonly used in outdoor equipment, trail cameras, industrial machines and other devices that must work in darkness.
Hardware alone does not determine low-light performance.
WDR helps preserve details when bright and dark areas appear in the same image, such as entrances, vehicles, warehouses and outdoor environments.
Noise reduction can make dark images look cleaner. However, excessive noise reduction may remove barcode edges, small defects or other important details.
ISP and firmware tuning control exposure, gain, white balance, colour, sharpness, noise reduction and day/night switching.
A good sensor may still produce a poor image if the firmware is not optimized for the application.
850nm and 940nm are two commonly used infrared wavelengths.
Choose 850nm when image brightness and working distance are more important.
Choose 940nm when the infrared light should be less visible to people or animals.
The final result also depends on the sensor, IR LED power, lens and working environment.
Focus on IR working distance, 850nm or 940nm selection, trigger speed, power consumption and the clarity of moving animals or people.
Focus on motion blur, frame rate, power consumption, camera size, USB or MIPI compatibility and host-platform ISP support.
Focus on stable exposure, image consistency, defect visibility, flicker control, working distance and image latency.
In many industrial applications, a controlled external light source can provide more consistent results than simply selecting a more sensitive sensor.
Vehicle cameras usually require WDR, motion performance and good night-time detail.
Barcode cameras must preserve sharp edges and contrast. Long exposure or excessive noise reduction may reduce recognition accuracy.

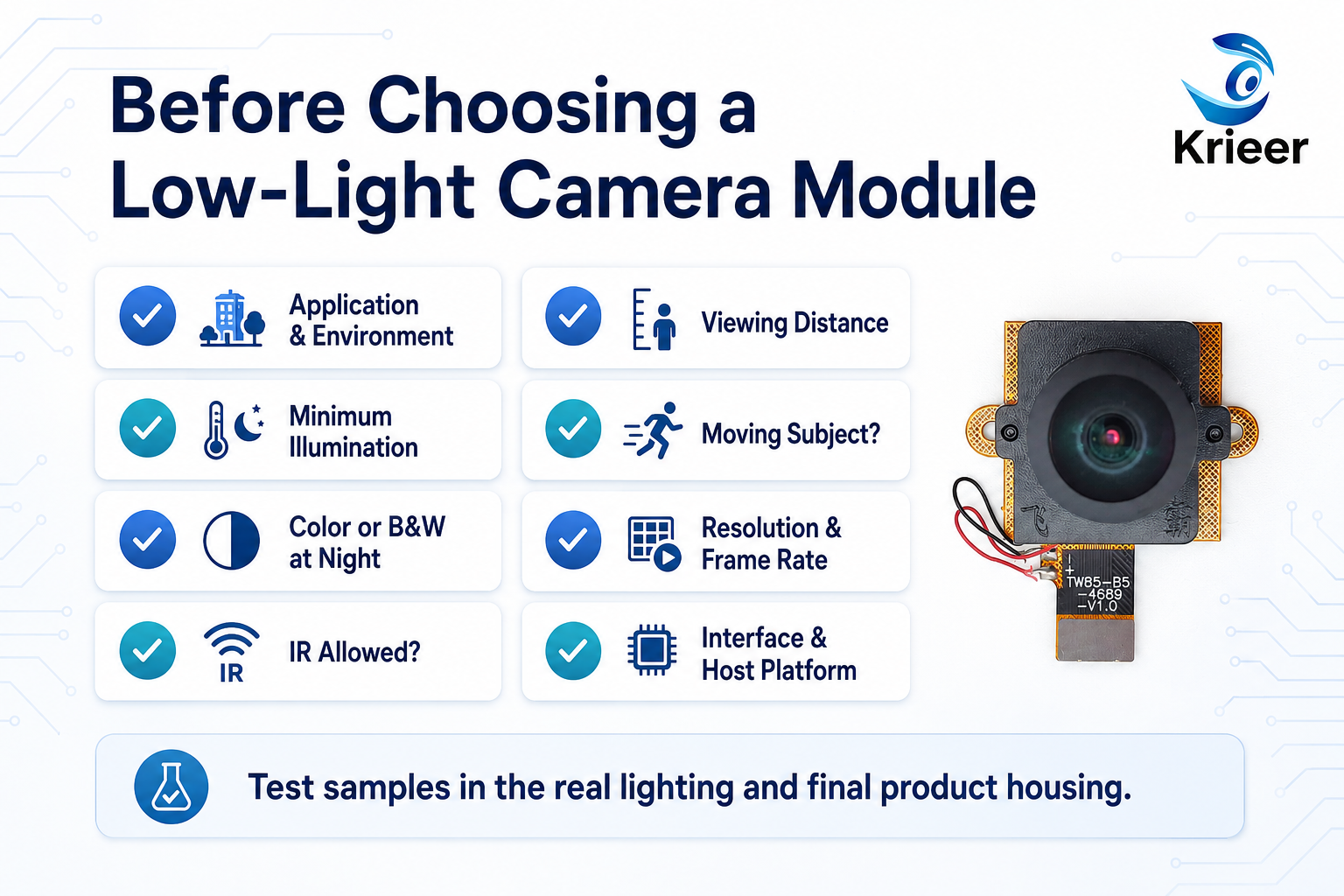

Before requesting a recommendation, provide your camera supplier with:
If you do not know the exact illumination level, provide photos or videos of the real working environment.
Always test the sample inside the final product housing, because cover glass and internal reflections may affect image quality.
Do not select a low-light camera based only on resolution or a “starlight” label.
For applications with some visible light, start with a sensitive sensor, suitable pixel size and large-aperture lens.
For environments with little or no visible light, consider an IR-sensitive sensor and 850nm or 940nm illumination.
For scenes with strong backlight, prioritize WDR and exposure tuning.
The correct solution depends on what your device needs to see and the conditions in which it must operate.
With 18 years of camera-industry experience, Krieer provides low-light and night-vision camera modules for industrial equipment, outdoor devices, robotics, vehicle systems and smart hardware.
We support:
Send us your application, working environment, minimum illumination, working distance, interface and estimated quantity. Our engineering team will help evaluate a suitable camera solution.
