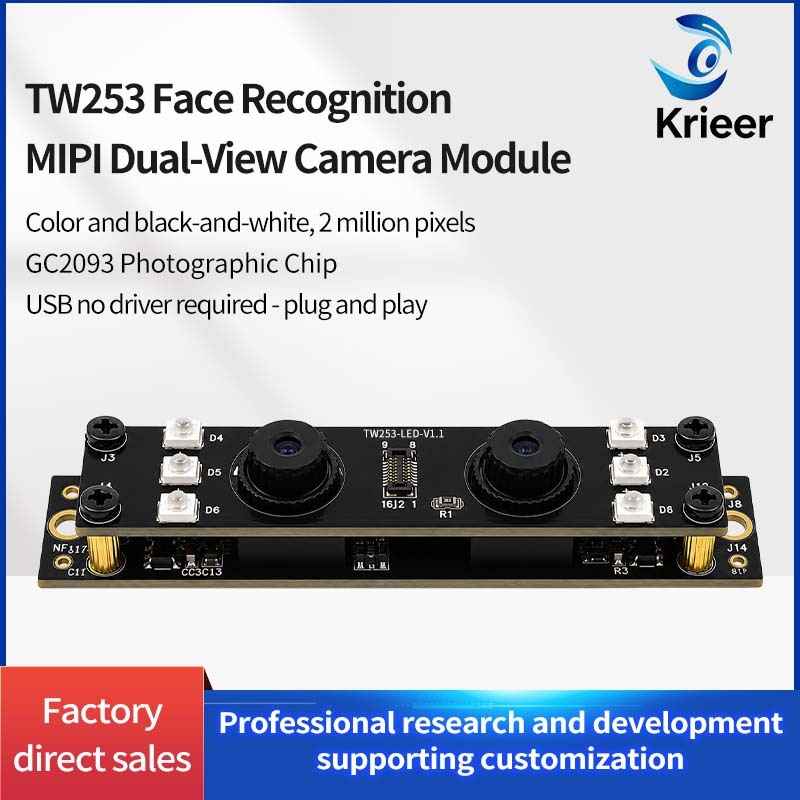

Product Overview
TW253 is a 2MP MIPI dual-lens camera module designed for embedded face recognition and access control applications. It combines RGB color imaging and IR monochrome imaging, making it suitable for devices that require stable recognition performance under different lighting environments.
The module adopts a compact PCB + stacked PCB structure and supports MIPI 2-lane interface for embedded device integration. It can be used with common AI vision platforms and mainboards such as RV1109, RV1126, RK3399, RK3288, RK3568, Allwinner, Samsung, MTK, Hisilicon and Ingenic solutions.
OEM/ODM customization is available for lens, FOV, FPC, connector, board size, recognition distance, IR fill light and image tuning requirements.
Key Features
- 2MP RGB color camera + 2MP IR monochrome camera
- MIPI 2-lane interface for embedded integration
- RGB sensor: GC2093
- IR sensor: GC2053
- Supports face recognition and identity verification applications
- Infrared fill light support
- Good depth of field for recognition distance
- Output supports up to 1920×1080 at 30fps
- Raw Bayer 10bit / 8bit output format
- Dynamic range up to 65dB

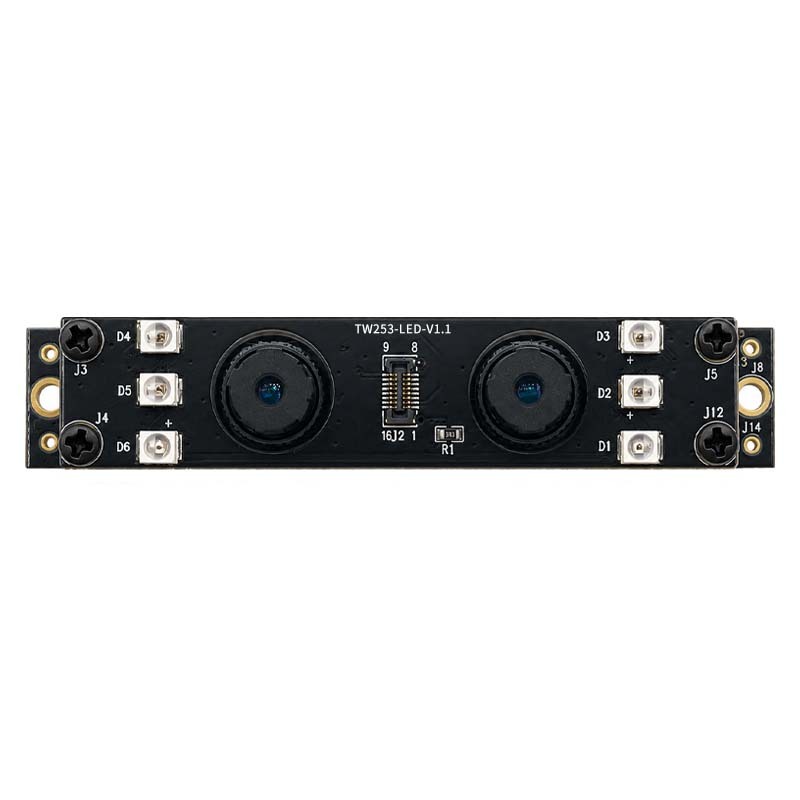

- Compact PCB + stacked PCB structure
- Supports portrait screen applications
- Lens, FOV, board size and connector can be customized
- OEM/ODM customization supported

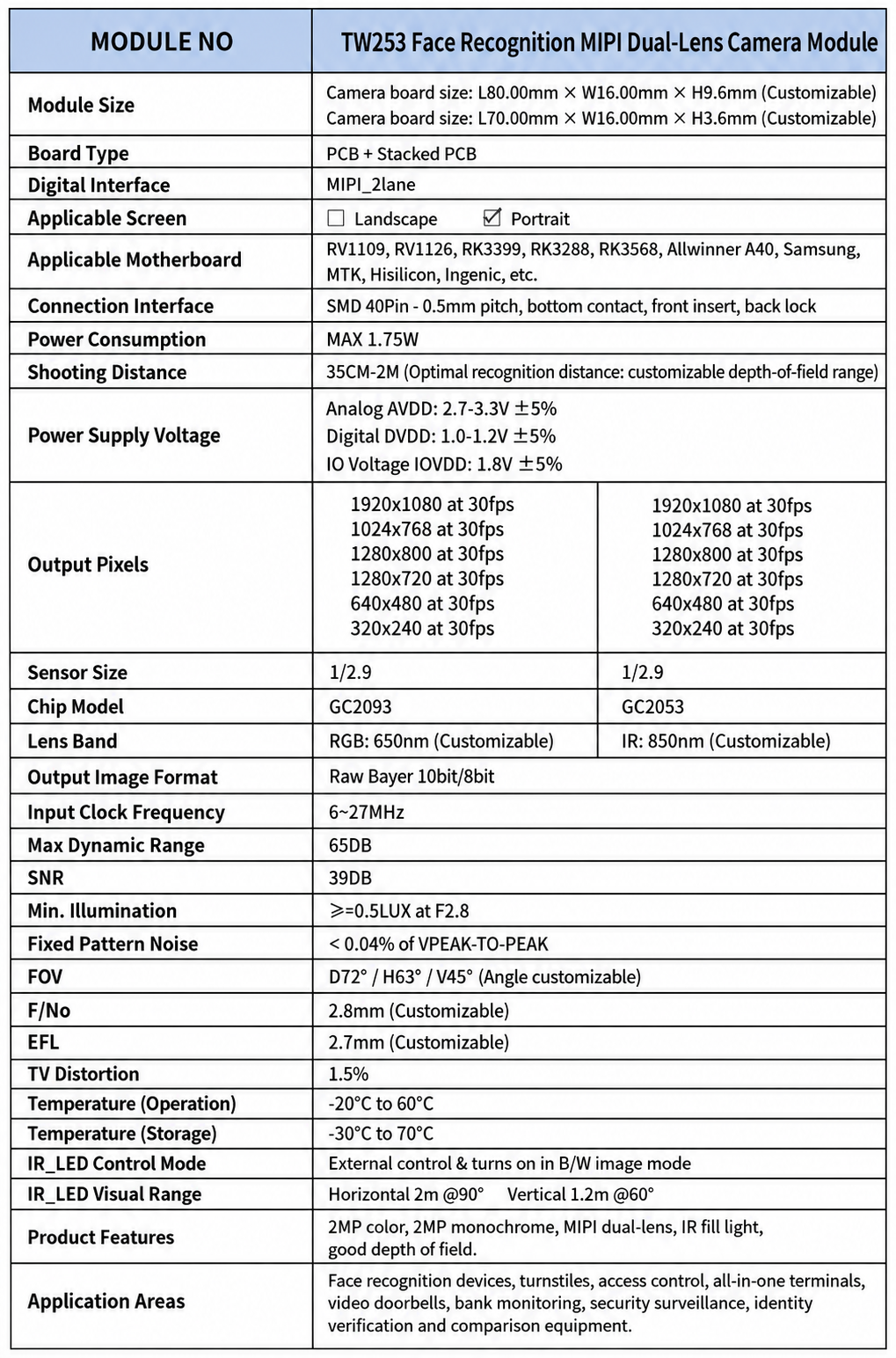

Main Specifications
- Model: TW253
- Product Type: MIPI Dual-Lens Face Recognition Camera Module
- Interface: MIPI 2-lane
- Camera Structure: RGB + IR dual-lens
- RGB Sensor: GC2093
- IR Sensor: GC2053
- Sensor Size: 1/2.9 inch
- Resolution: 2MP color + 2MP monochrome
- Max Output: 1920×1080 at 30fps
- Output Format: Raw Bayer 10bit / 8bit
- FOV: D72° / H63° / V45°, customizable
- Lens Band: RGB 650nm / IR 850nm, customizable
- Shooting Distance: 35cm–2m, customizable
- Dynamic Range: 65dB
- SNR: 39dB
- Minimum Illumination: ≥0.5 Lux at F2.8
- IR LED Visual Range: Horizontal 2m @ 90°, Vertical 1.2m @ 60°
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -30°C to 70°C
Applications
Widely used in:
- Face recognition terminals
- Access control systems

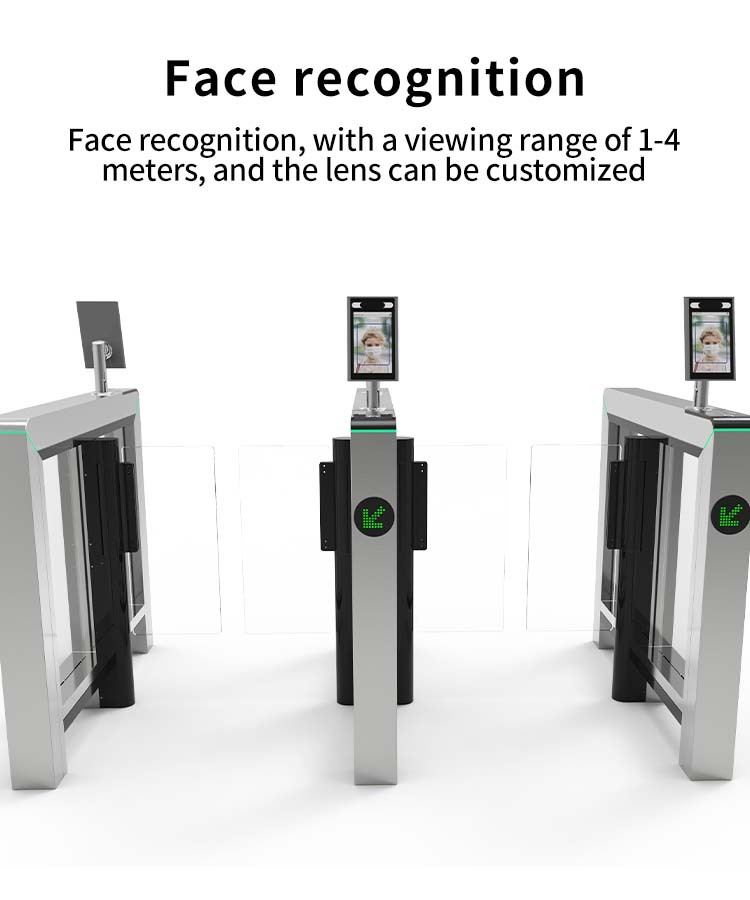

- Smart gate machines
- Turnstiles
- Video doorbells
- All-in-one terminals
- Bank monitoring equipment
- Security surveillance devices
- Identity verification systems
- Embedded AI vision devices
