Product Overview

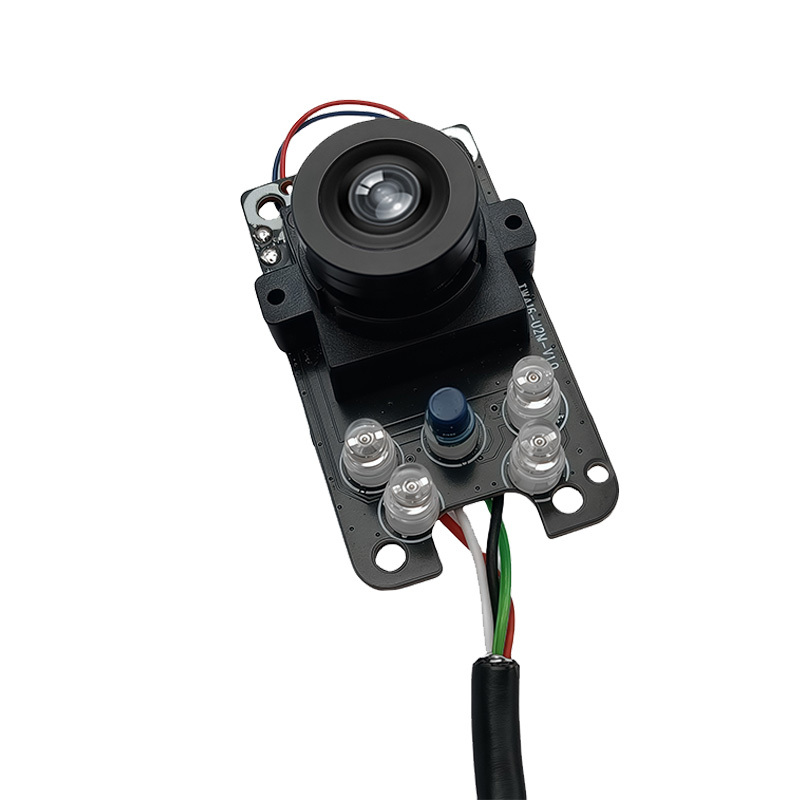

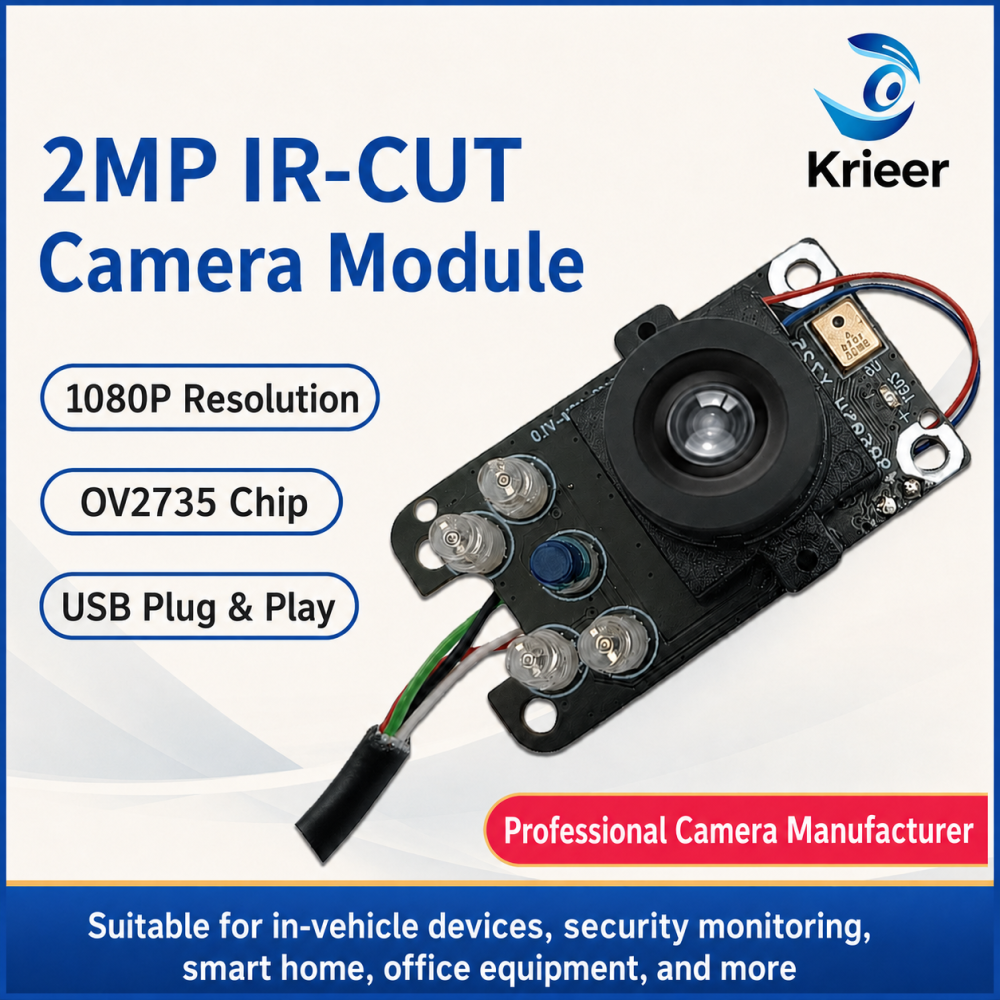

TW416 is a 2MP USB IR-CUT camera module designed for embedded visual devices that require stable image output and day/night imaging support. It adopts the OV2735 image sensor and supports USB 2.0 plug-and-play operation, making it easy to integrate into security devices, access control terminals, smart home products and industrial monitoring systems.
With IR-CUT support and a 92° field of view, this module helps deliver clearer image performance under different lighting environments. It is suitable for OEM/ODM projects that require compact structure, stable transmission and flexible camera module customization.
OEM/ODM customization is available for lens, FOV, PCB size, connector, cable structure, IR-CUT solution and image tuning requirements.
Key Features
- 2MP Full HD image output
- OV2735 photosensitive sensor
- IR-CUT support for day/night imaging

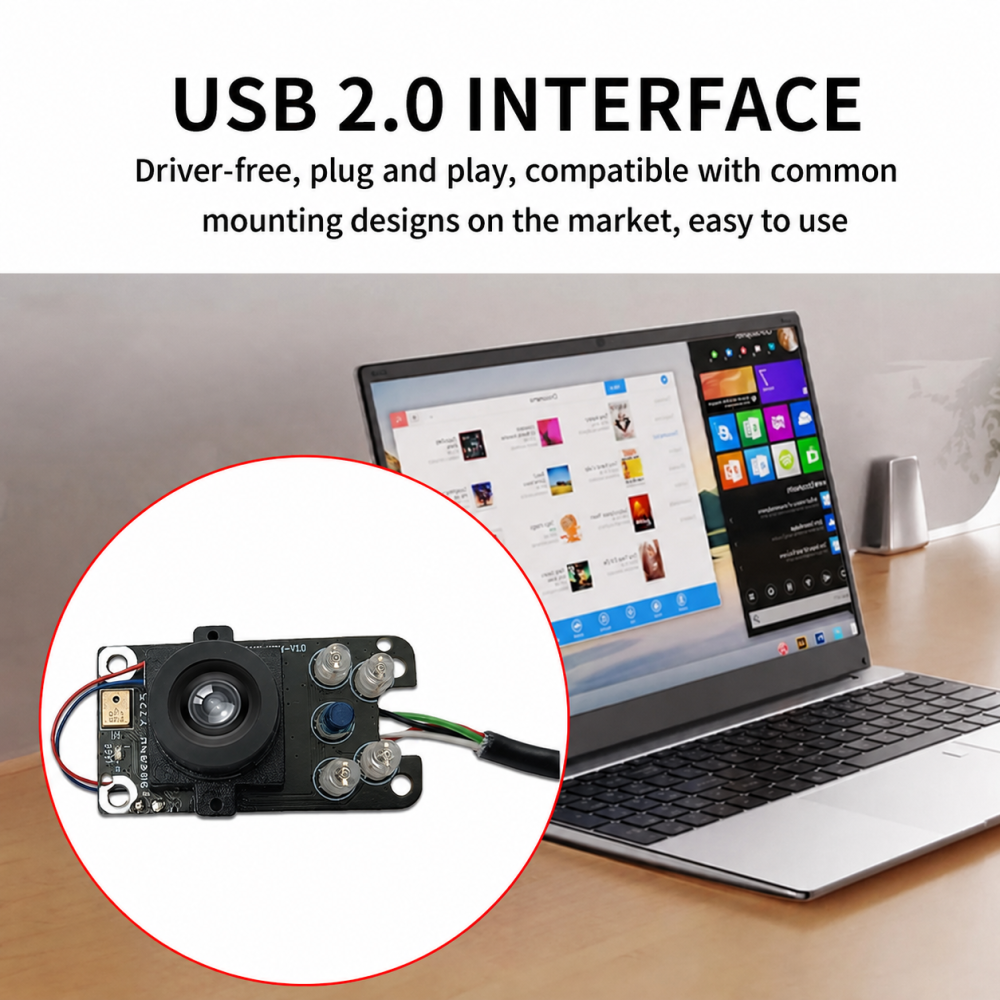

- USB 2.0 interface, plug-and-play
- UVC driver-free system compatibility
- 92° field of view
- Stable image transmission performance
- Compact board camera module design
- Suitable for security and smart device integration
- Lens, FOV, PCB size and connector can be customized
- OEM/ODM customization supported

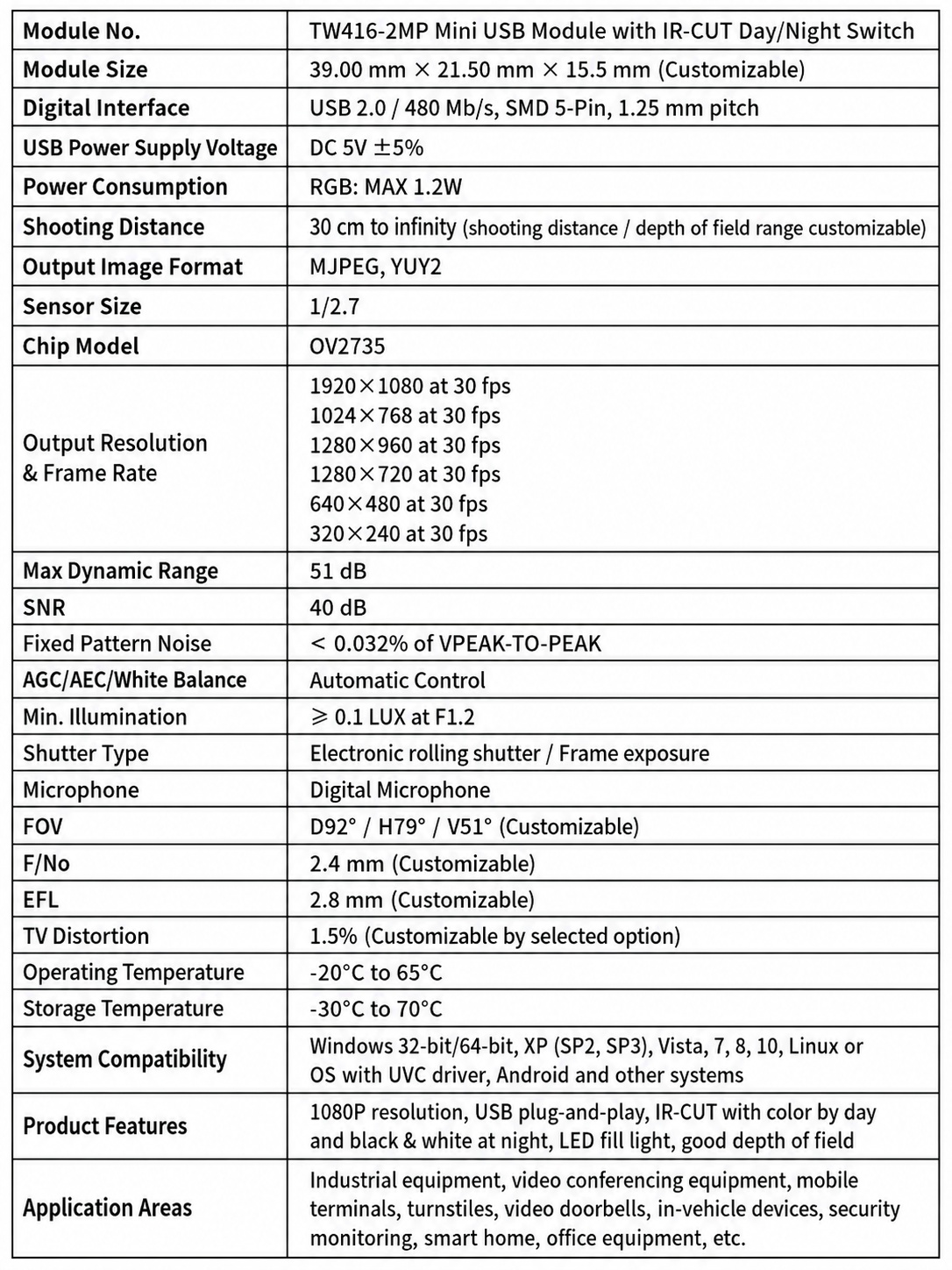

Main Specifications
- Model: TW416
- Product Type: USB IR-CUT Camera Module
- Sensor: OV2735
- Resolution: 2MP
- Interface: USB 2.0
- FOV: 92°
- Function: IR-CUT day/night imaging support
- System Support: Windows, Linux, Android and UVC-supported systems
- Customization: Lens, FOV, PCB size, connector, cable structure, IR-CUT solution and image tuning
Applications
Widely used in:
- Security monitoring devices
- Smart home cameras
- Access control equipment
- Industrial monitoring systems
- Embedded visual devices
- Smart terminals
- Video communication devices
- Safety monitoring equipment
- Customized OEM/ODM camera products
