Product Overview

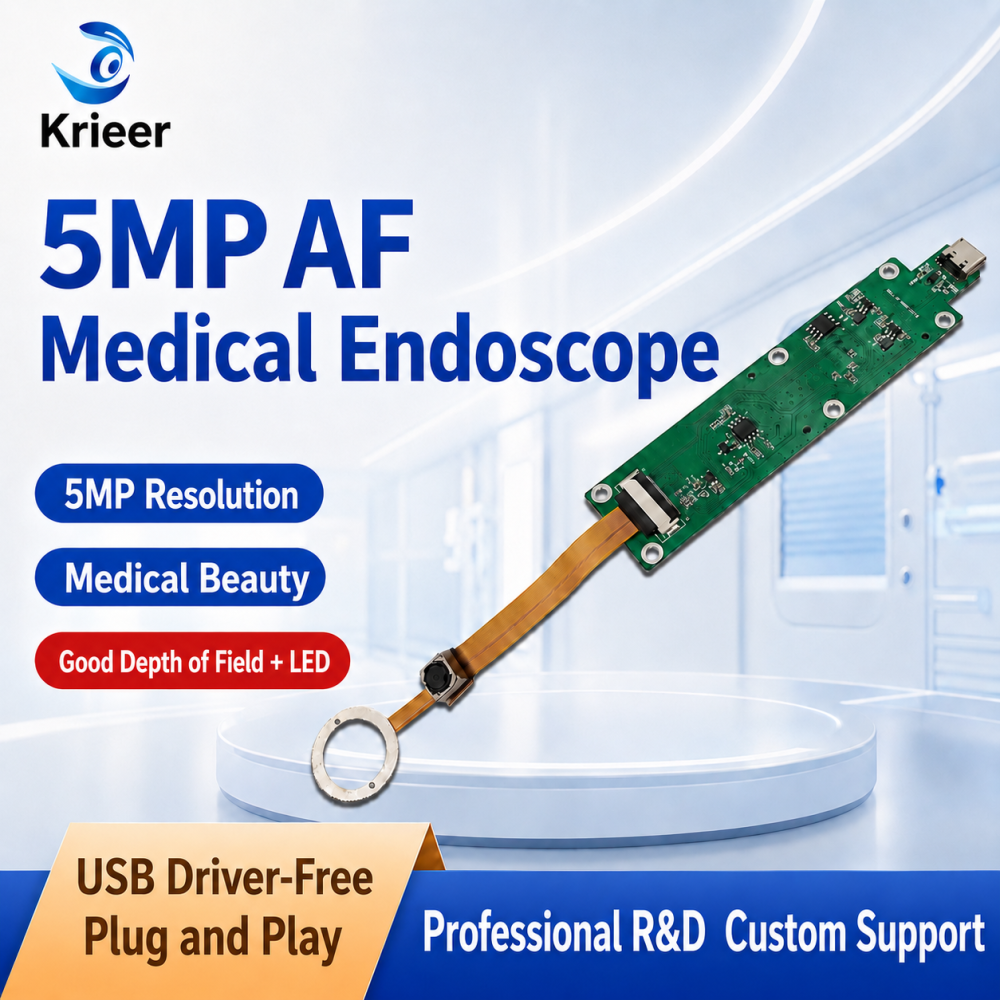

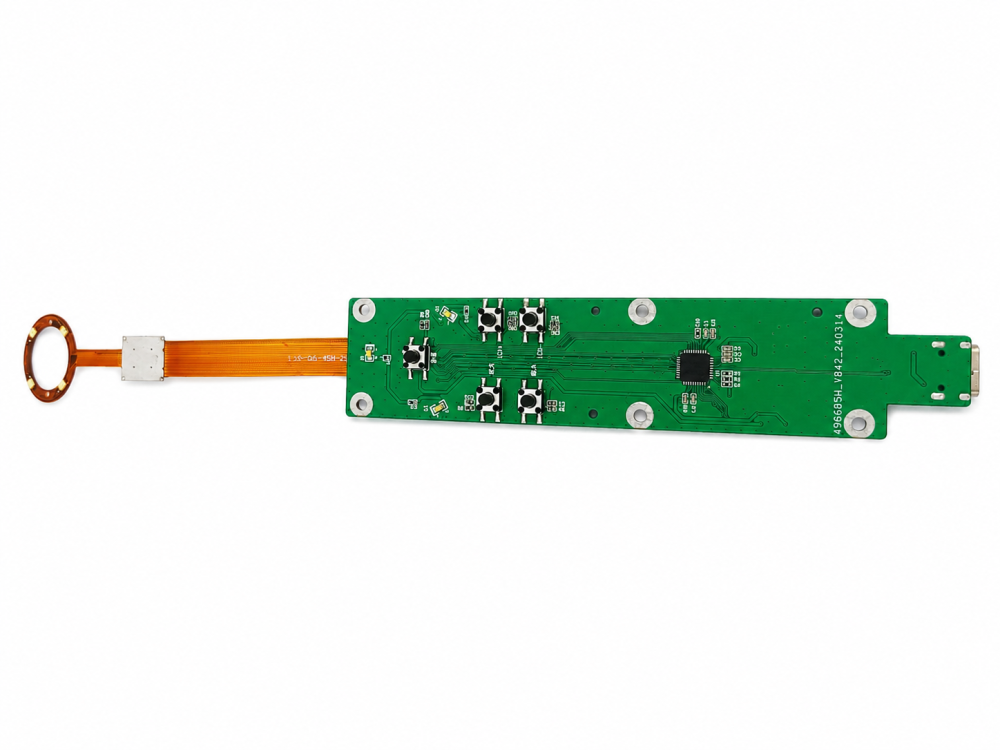

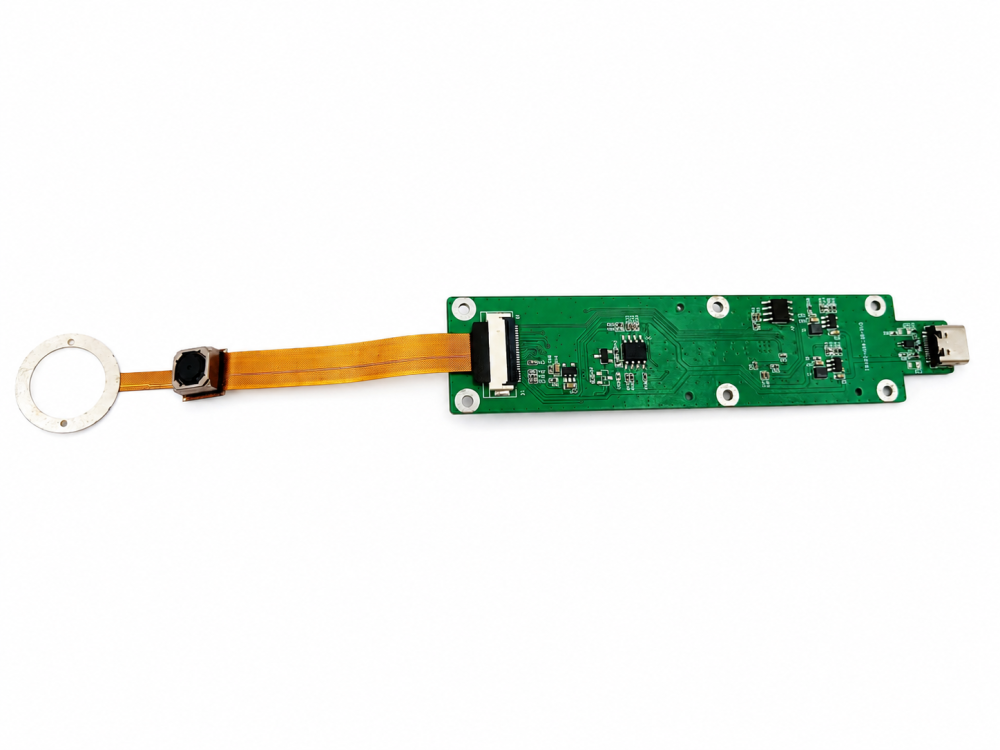

TW457 is a 5MP autofocus USB endoscope camera module designed for medical auxiliary imaging and industrial inspection applications. It supports high-definition image capture, close-range focusing and stable USB image transmission, making it suitable for compact equipment that requires clear visual inspection in narrow spaces.
With a 75° field of view, USB 2.0 interface and UVC driver-free compatibility, this module can be easily integrated into endoscope devices, dental equipment, beauty instruments, industrial borescopes and other embedded visual systems.
OEM/ODM customization is available for lens, FOV, PCB size, FPC length, connector, cable structure and imaging requirements.
Key Features
- 5MP high-definition image output
- Autofocus support for close-range inspection
- USB 2.0 interface, plug-and-play
- UVC driver-free system compatibility
- 75° field of view
- OV5693 image sensor
- Compact module design for embedded integration
- Suitable for medical auxiliary and industrial inspection devices
- Stable image transmission performance
- Lens, FOV, cable and structure can be customized
- OEM/ODM customization supported

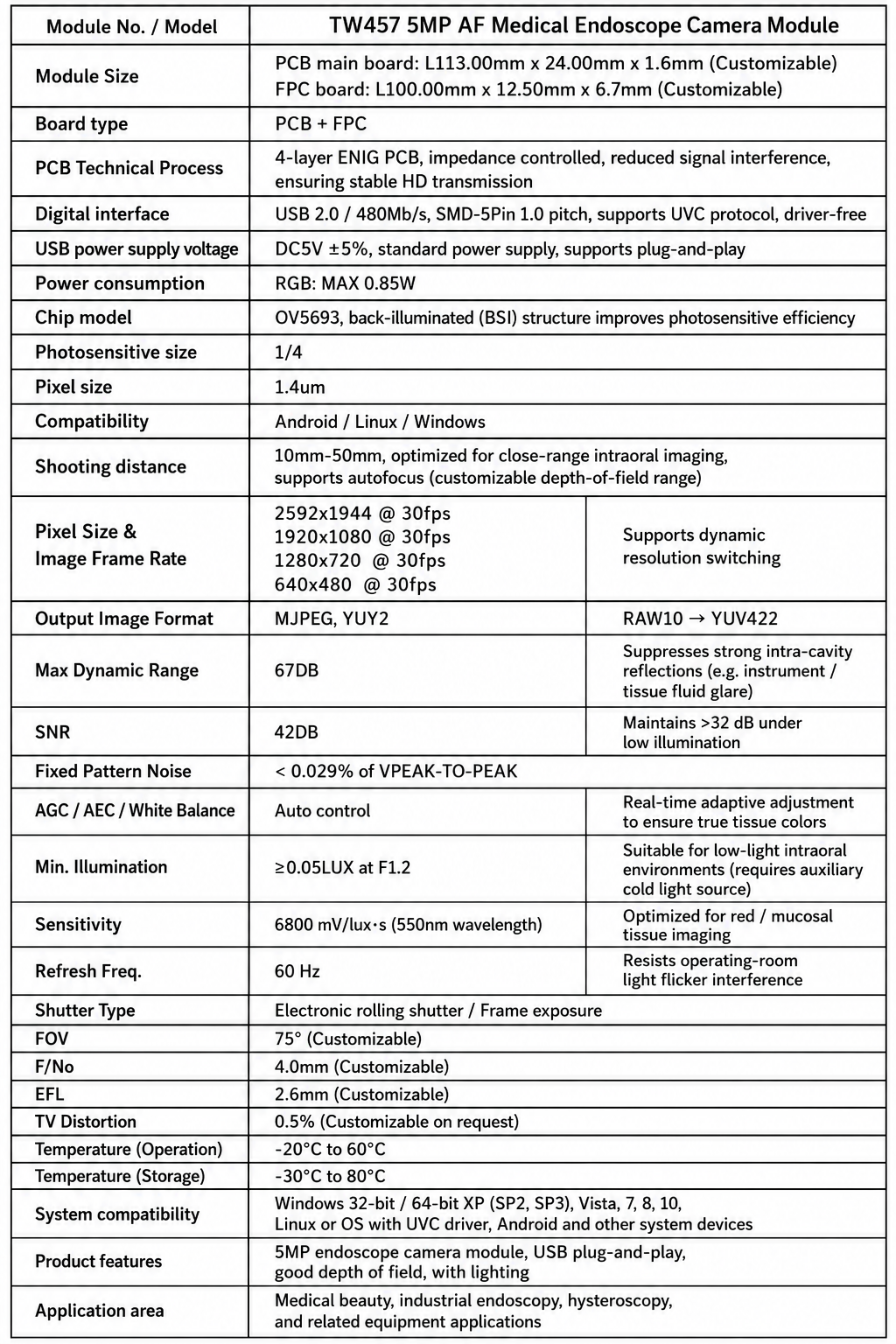

Main Specifications
- Model: TW457
- Product Type: AF Endoscope Camera Module
- Resolution: 5MP
- Image Sensor: OV5693

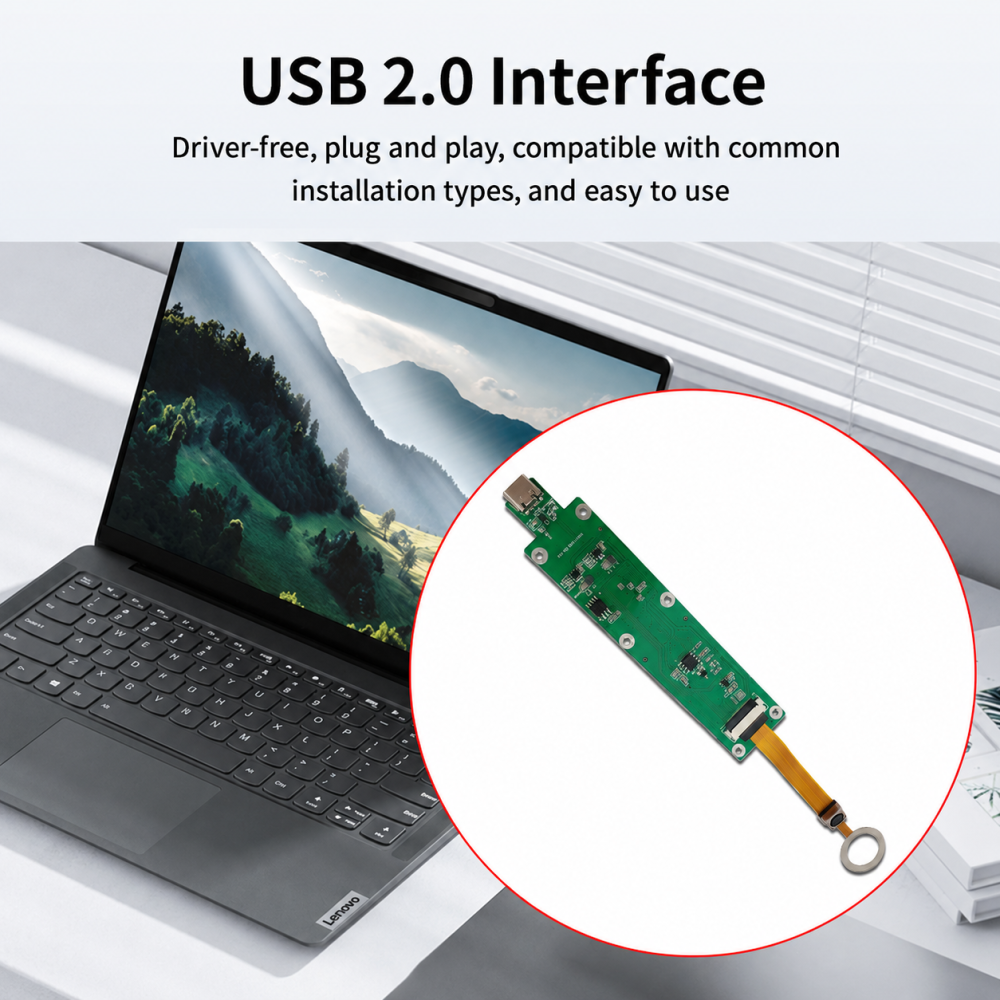

- Interface: USB 2.0
- Focus Type: Autofocus
- FOV: 75°
- System Support: Windows, Linux and UVC-supported systems
- Customization: Lens, FOV, cable, connector, PCB/FPC structure
Applications
Widely used in:
- Medical auxiliary imaging equipment
- Endoscope devices
- Dental inspection equipment
- Beauty and skin inspection devices
- Industrial borescope inspection
- Pipeline inspection
- Machinery inspection
- Embedded visual inspection systems
