Product Overview

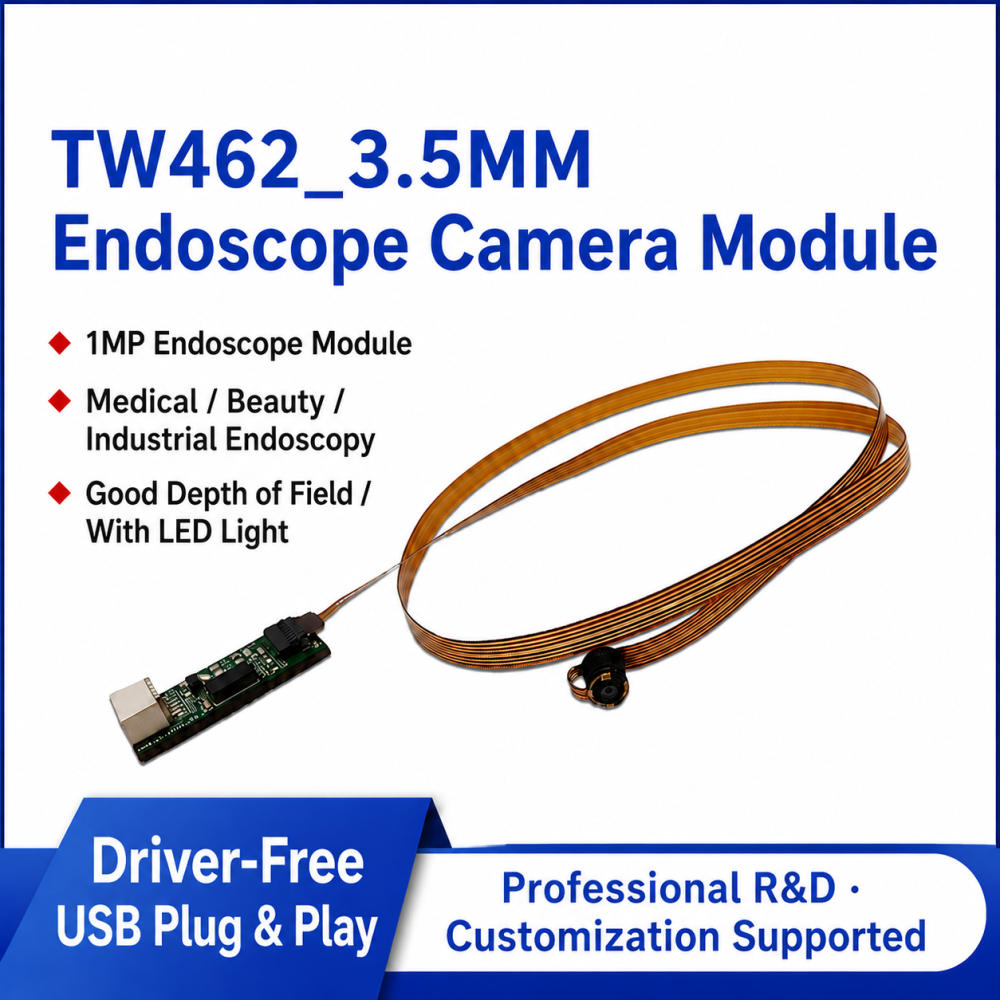

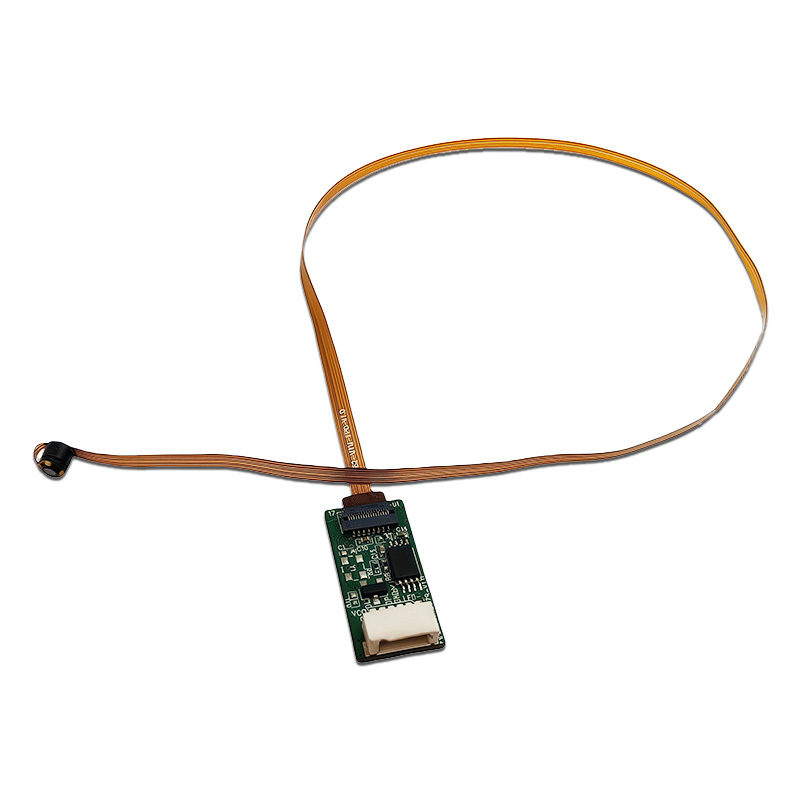

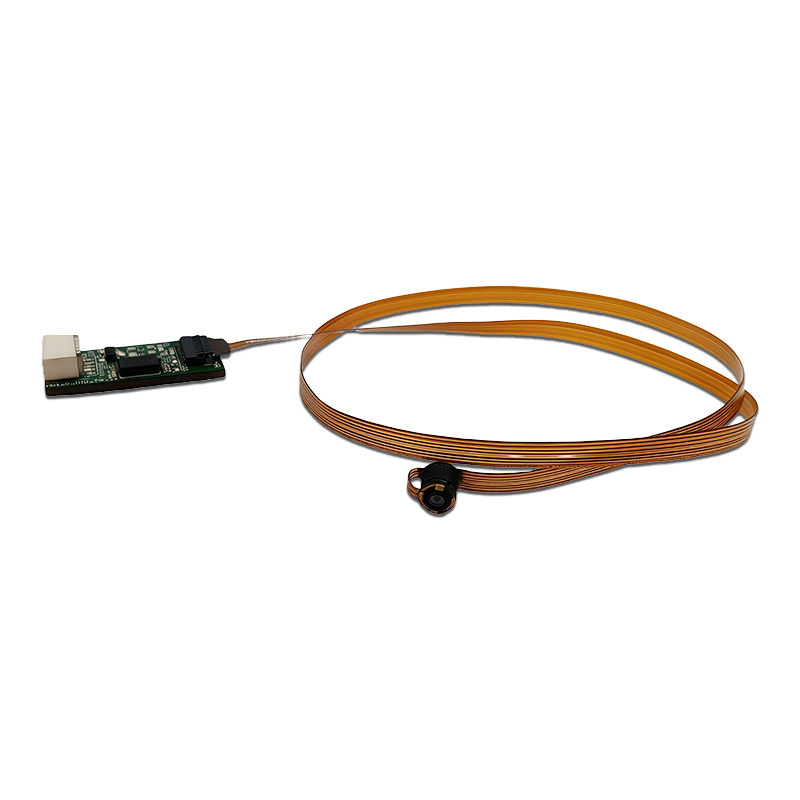

TW462 is a compact 3.5mm USB endoscope camera module designed for embedded visual applications that require a miniature lens size and stable image output. It adopts the OV9734 image sensor and supports USB 2.0 plug-and-play operation, making it suitable for compact inspection devices and narrow-space imaging applications.
With its ultra-small 3.5mm lens structure and 90° field of view, this module can be integrated into inspection equipment, industrial visual devices, medical auxiliary equipment and other customized endoscopic systems.
OEM/ODM customization is available for lens, FOV, cable length, connector, module structure and image tuning requirements.
Key Features
- 1MP high-definition image output
- 3.5mm ultra-mini lens design
- OV9734 photosensitive sensor

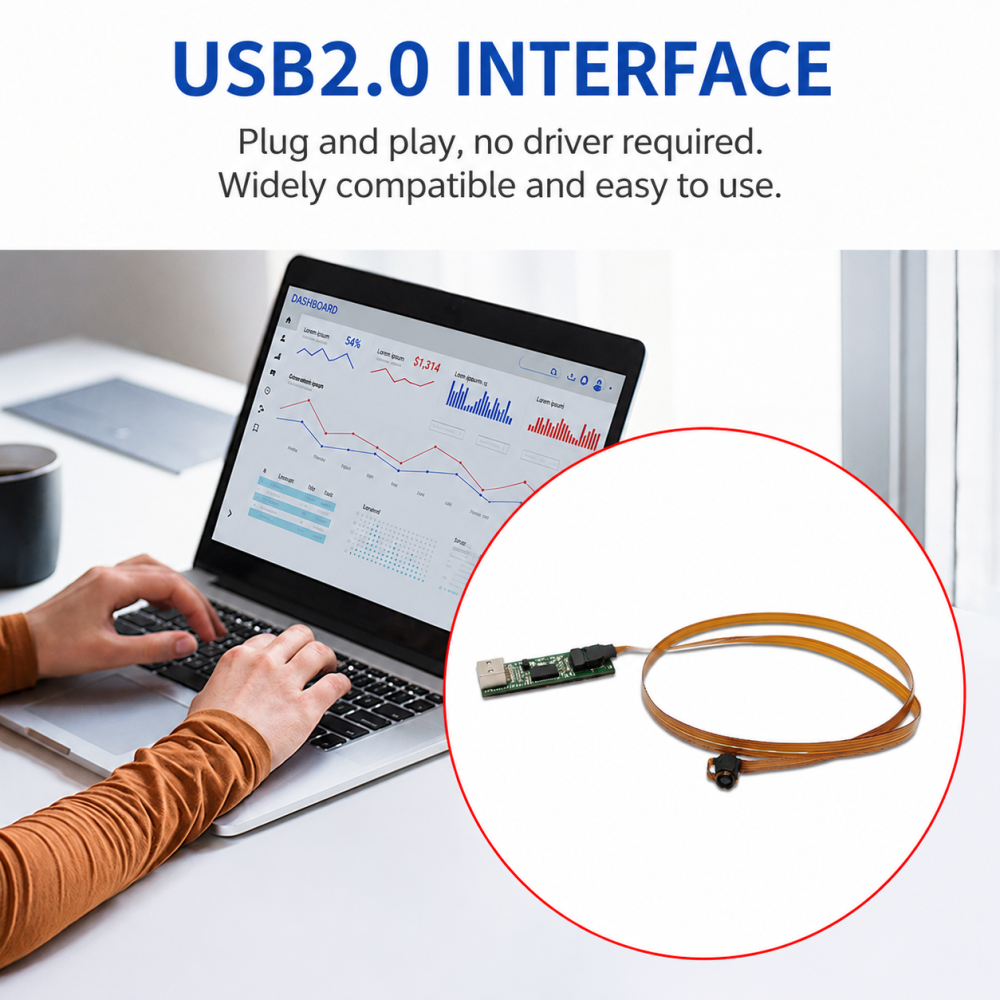

- USB 2.0 interface, plug-and-play
- UVC driver-free system compatibility
- 90° field of view
- Suitable for narrow-space inspection applications
- Compact cable camera module structure
- Stable image transmission performance
- Lens, FOV, cable length and connector can be customized
- OEM/ODM customization supported

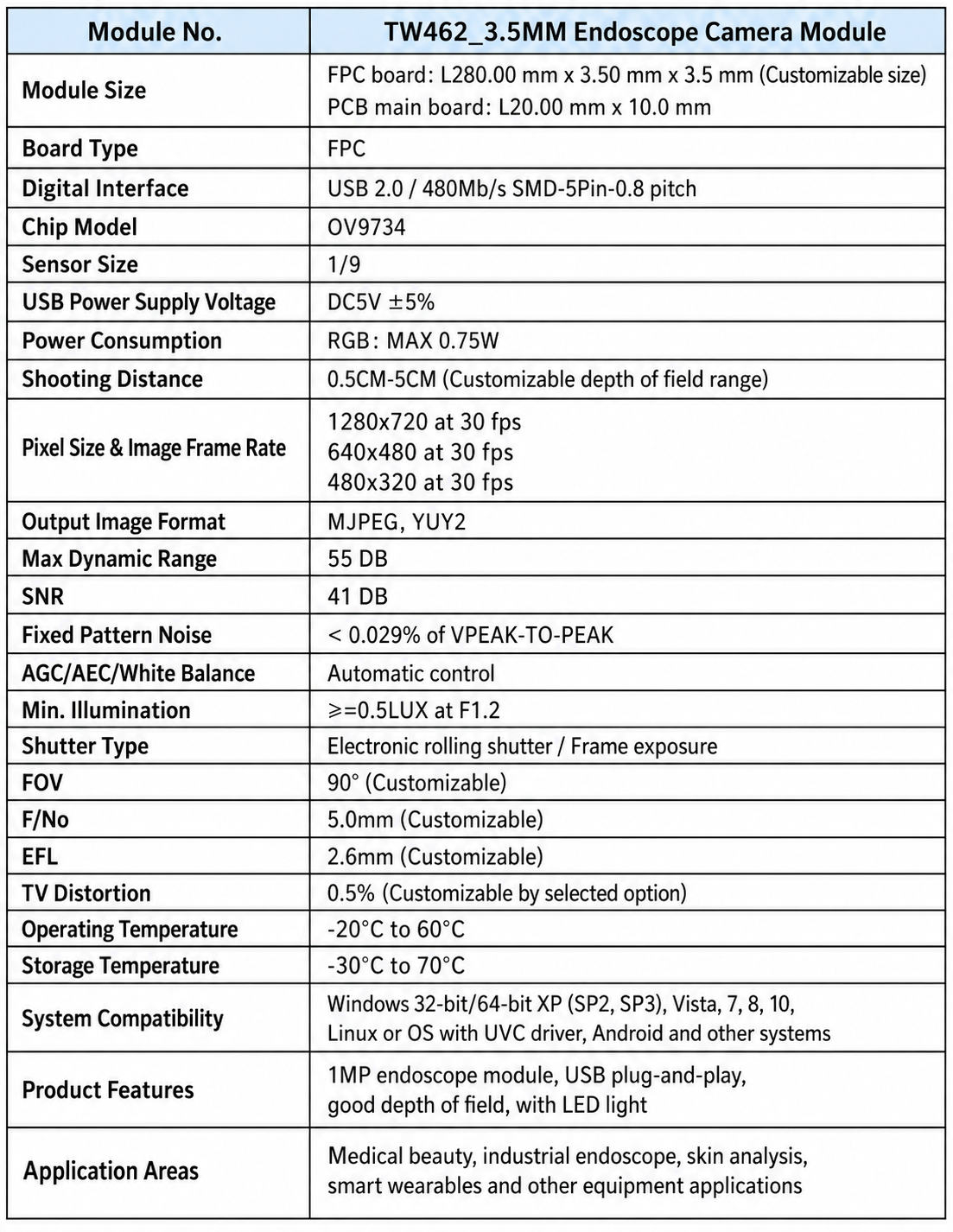

Main Specifications
- Model: TW462
- Product Type: USB Endoscope Camera Module
- Sensor: OV9734
- Resolution: 1MP
- Lens Diameter: 3.5mm
- Interface: USB 2.0
- FOV: 90°
- System Support: Windows, Linux, Android and UVC-supported systems
- Customization: Lens, FOV, cable length, connector and image tuning
Applications
Widely used in:
- Medical auxiliary equipment
- Skin and beauty inspection devices
- Narrow-space inspection equipment
- Embedded visual systems
- Industrial inspection devices
- Smart security equipment
- Small cavity observation devices
- Customized OEM/ODM endoscope camera products
