Product Overview

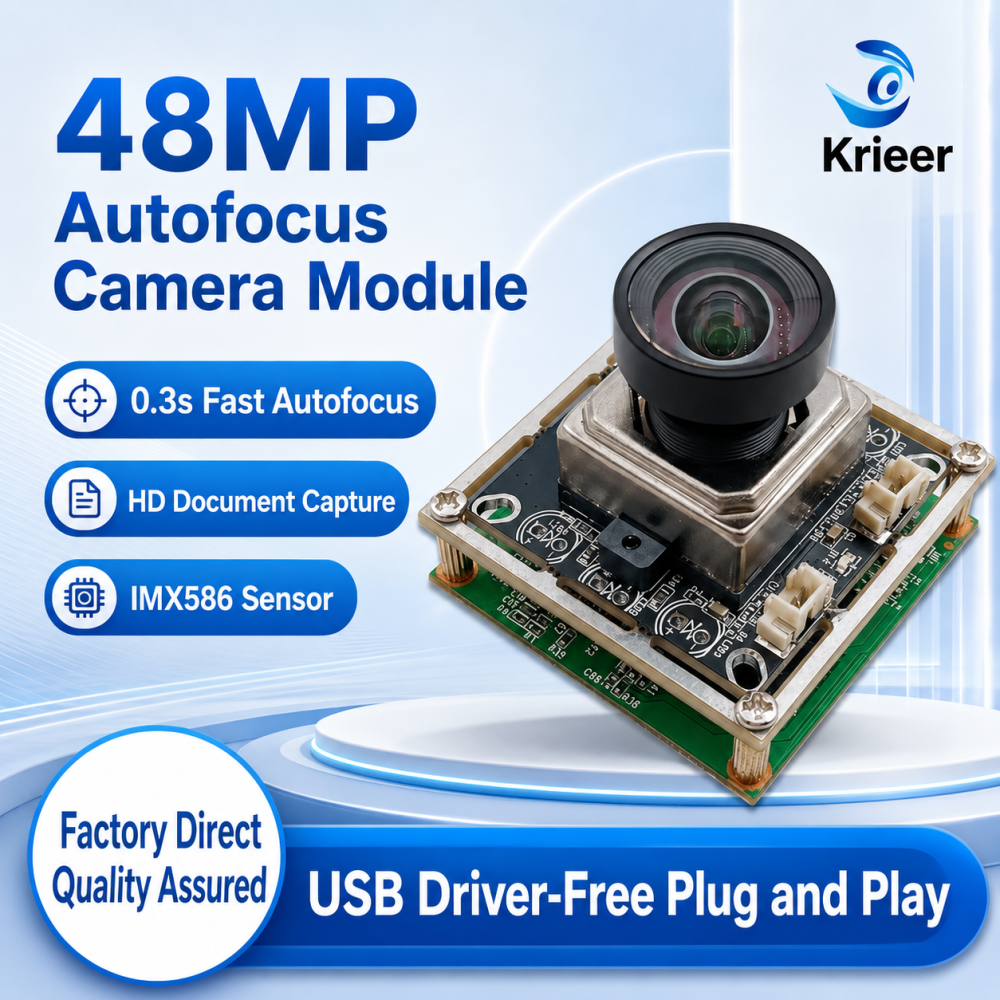

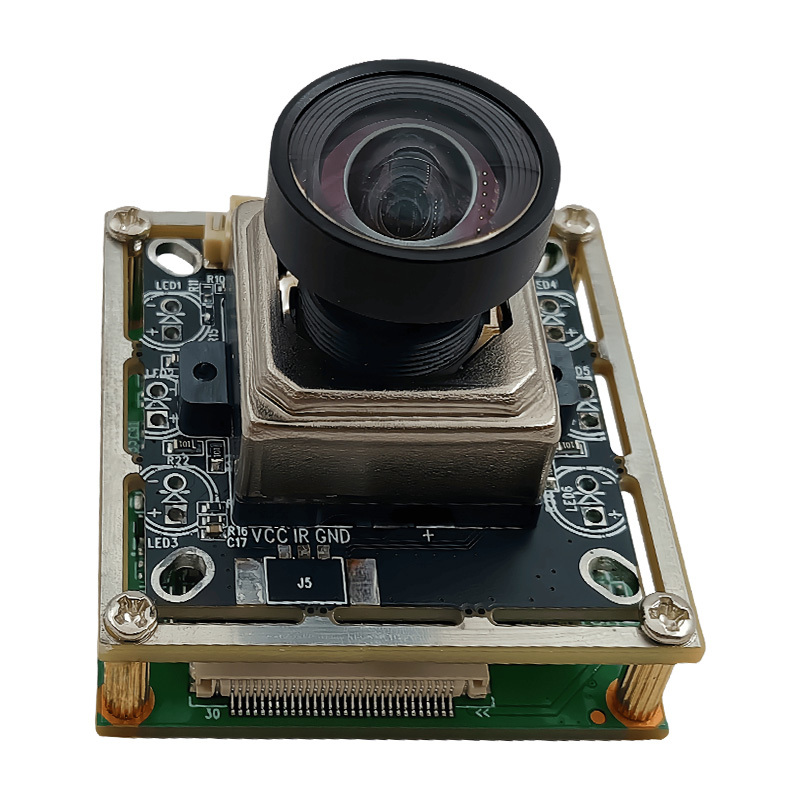

TW501 is a high-resolution 48MP autofocus USB camera module designed for embedded vision applications that require clear image capture and fast focusing performance. It adopts the IMX586 image sensor and supports autofocus, helping devices capture sharper images in different working distances.
With USB plug-and-play support and wide system compatibility, this module can be easily integrated into video conferencing equipment, education devices, live streaming systems, industrial inspection equipment, smart terminals and other embedded visual products.
OEM/ODM customization is available for lens, FOV, PCB size, cable structure, connector, housing and image tuning requirements.
Key Features
- 48MP high-resolution image sensor
- IMX586 photosensitive chip
- Autofocus support for clearer image capture
- Fast focusing performance for different working distances

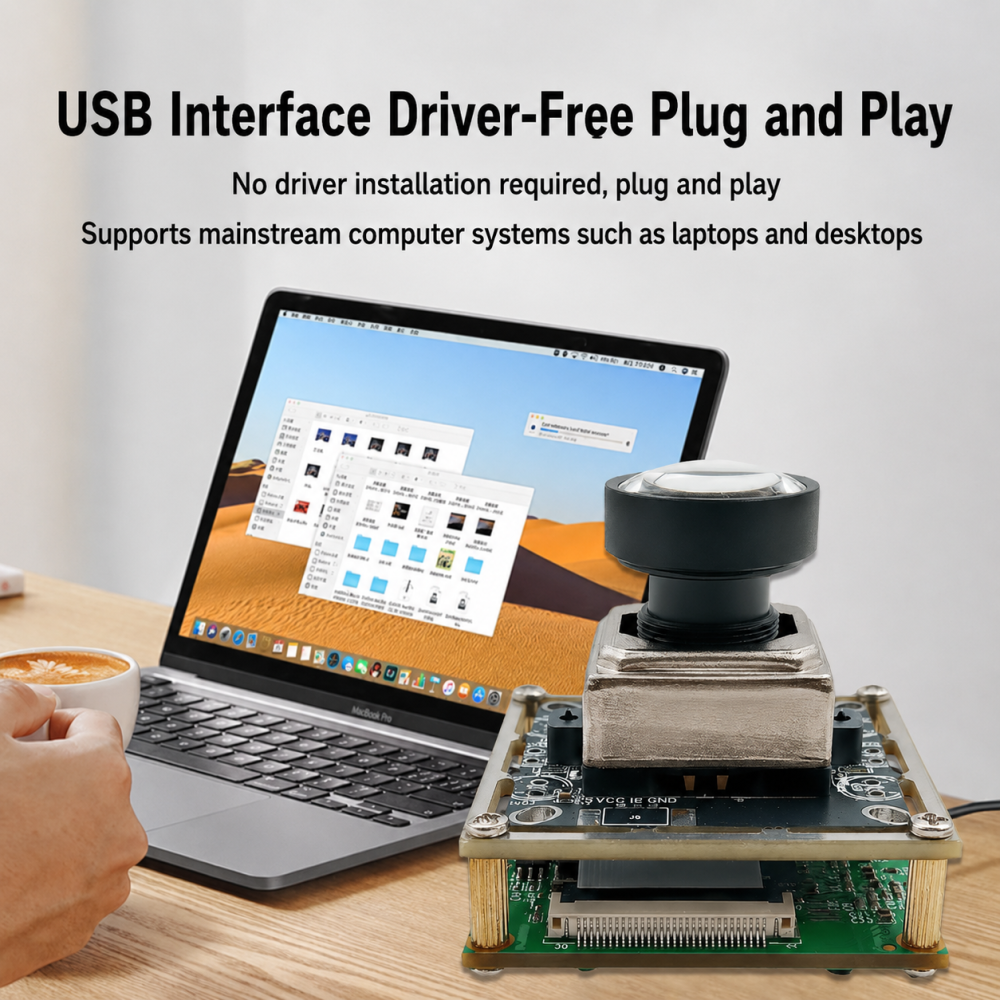

- USB interface, plug-and-play
- UVC driver-free system compatibility
- 90° field of view
- Suitable for high-definition visual applications

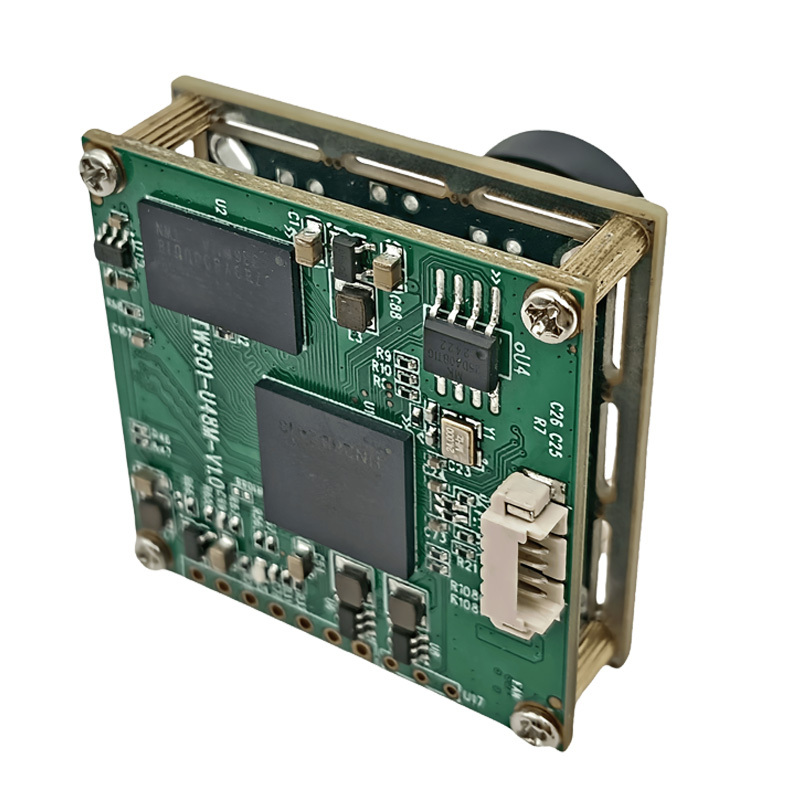

- Compact PCB design for embedded integration
- Lens, FOV, cable and structure can be customized
- OEM/ODM customization supported

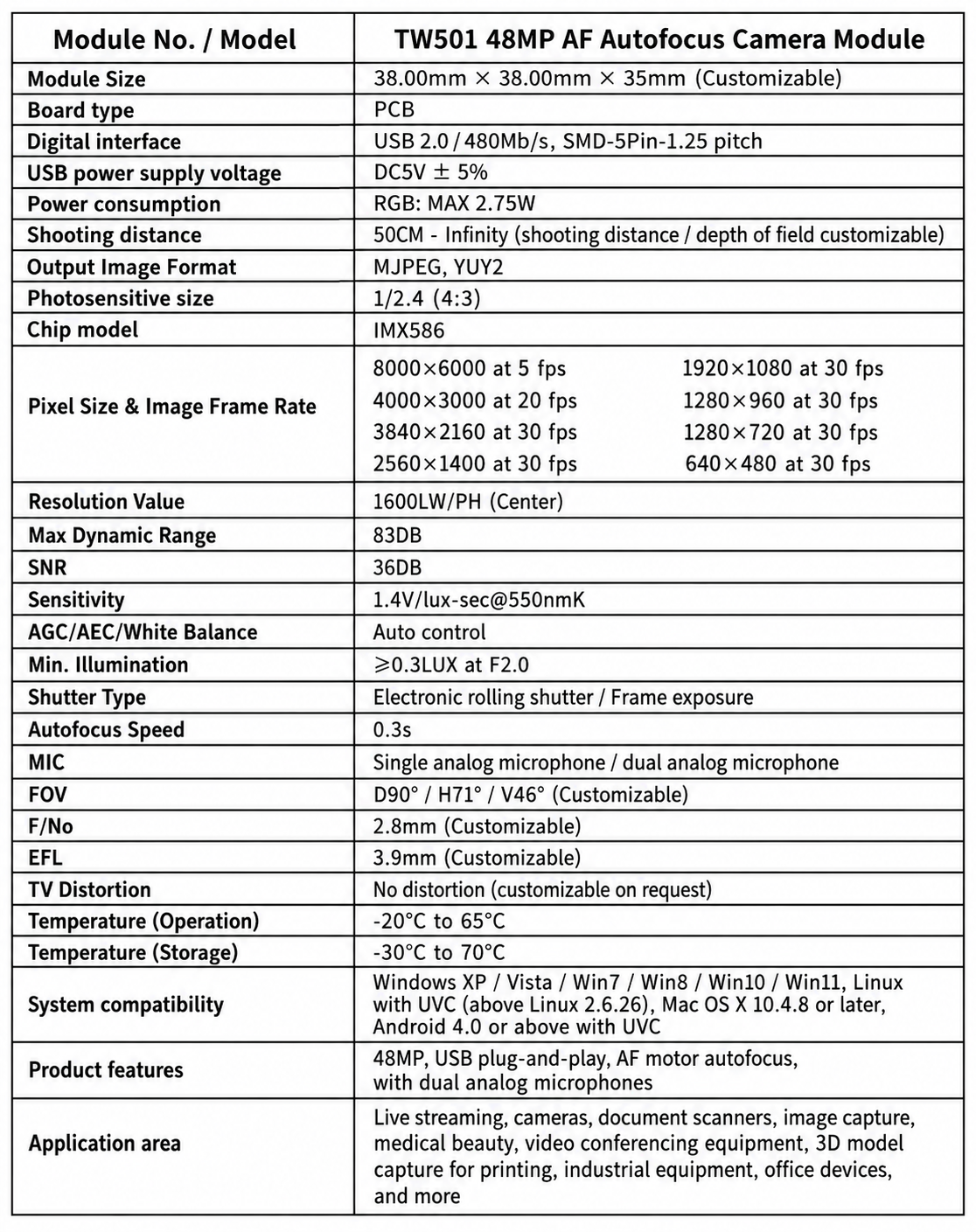

Main Specifications
- Model: TW501
- Product Type: AF USB Camera Module
- Sensor: IMX586
- Resolution: 48MP
- Focus Type: Autofocus
- FOV: 90°
- Interface: USB

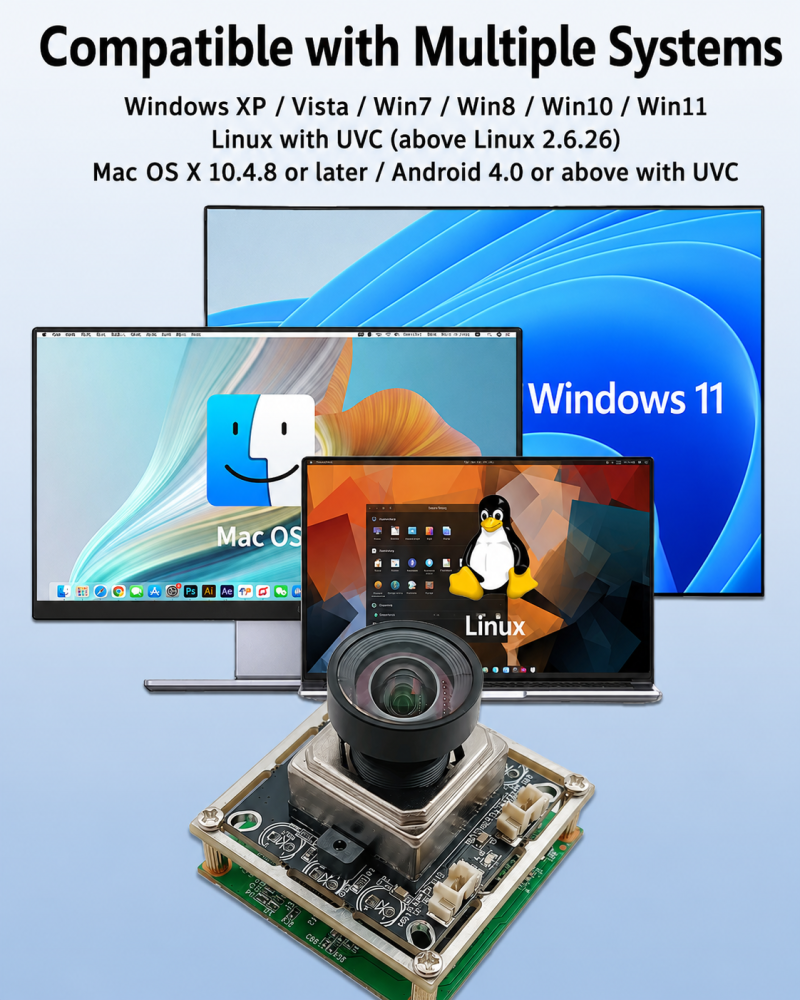

- System Support: Windows, Linux and UVC-supported systems
- Customization: Lens, FOV, PCB size, cable, connector and image tuning
Applications
Widely used in:
- Industrial visual inspection
- High-resolution imaging devices
- Video conferencing equipment
- Live streaming devices
- Online education equipment
- Smart terminals
- AI vision devices
- Embedded camera systems
- Document capture equipment
- Machine vision applications
